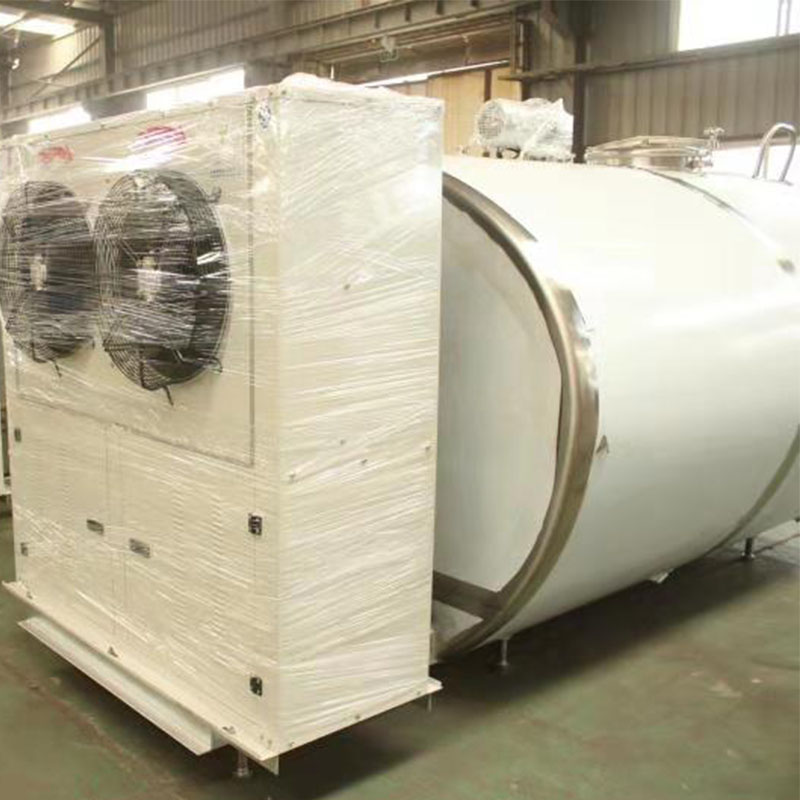

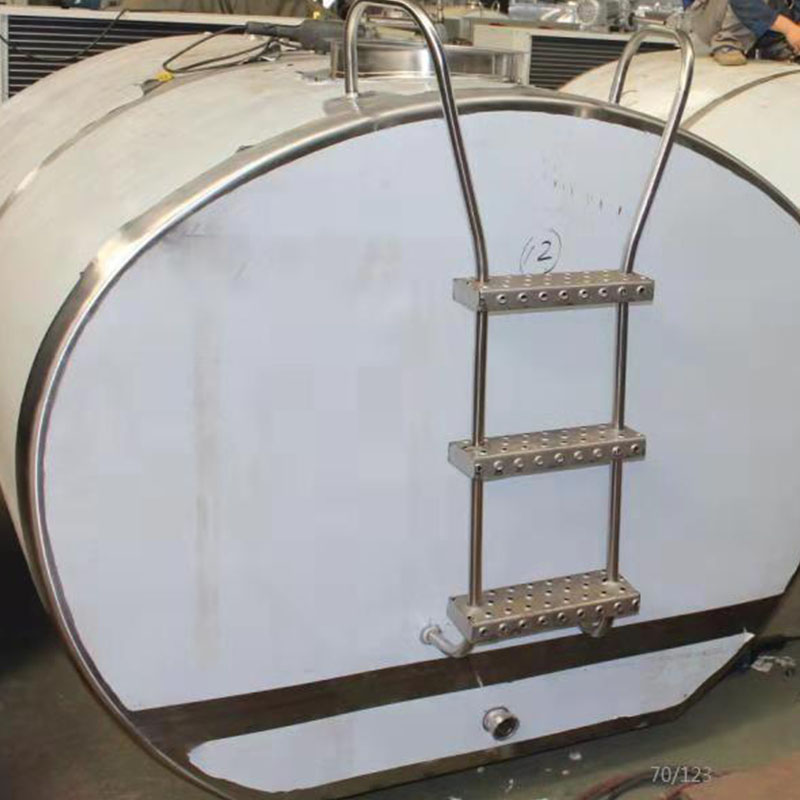

Milk Storage Tank

Name: Milk Storage Tank
Brand: CAMCO MALL
Price: 99999 USD
Availability: InStock

0.0 (0)

0 Sold

$99,999.00

The price above is FOB China price.
Please contact our local branches in Africa for precise prices.
If the price is $99999, please contact us for precise prices.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description
About Camco

Project		TFCT-3
Nominal Capacity		3000L
Size (Length * Width * Height)		341017801680～1720
Refrigerator	The Compressor	Valley Wheel Vortex Compressor
	Model	ZB45
	Refrigerating Capacity	17800W
	The Power Supply	3phase 4wire
	The Power Supply	380V 50Hz
	The Input Power	3.89kw
	Refrigerant	R22
The Evaporator	In The Form Of	Huff Honeycomb Plate Type Evaporator
The Evaporator	Cooling Area（㎡）	3.9
The Condenser	Cooling Way	Air Cooling
The Condenser	Condensation Area	72㎡
The Agitator	Deceleration Machine	NMRV063-40-0.75
The Agitator	Speed	35Revolutions Per Minute
Electric Control	Temperature Control	Digital Display Decay Computer Automatic Controller
Electric Control	To Protect The	Overvoltage, Undervoltage Protection, Leakage Protection, Compressor Overload Protection
Thermal Insulation Layer	Material	Cast Polyurethane，Thickness Is 65 ㎜
Thermal Insulation Layer	Performance	38 ℃ Ambient Temperature, The Temperature Rise of 2 ℃ Or Less 24 Hours A Day
CIP	DN40	1
Import	DN50	1
Export	DN50	1

1. Dairy fresh-keeping refrigeration tanks are designed in strict accordance with GB / T10942-2001 standards.
2. Milk tanks are all made of food-grade stainless steel, corrosion-resistant, with argon arc welding, precision polishing, beautiful, and generous.
3. Arc angle design, no sanitary dead angle, more convenient cleaning.
4.60mm polyurethane insulation layer to ensure that the temperature of the milk in the tank rises ≤0.2 ℃ / hour.
5. Adopt an advanced computer temperature controller for automatic temperature control of the refrigeration system (according to user requirements: generally shut down at 4 ℃ and start up at 6 ℃).
Stirring time can be set according to user requirements, with automatic start & stop, and manual start & stop.

6. The equipment system is equipped with a variety of safety protection measures such as high-pressure protection, low-pressure protection, motor overload protection, power phase loss protection, and circuit short-circuit protection.
In case of the above faults, the circuit will be automatically disconnected or alarmed, and the compressor will stop working, thereby effectively protecting the safety of the equipment.
7. Refrigeration units are all welded, and Helium computer leak detection is used to ensure that the refrigerant does not leak.

We are committed to providing customers with reasonably priced, high-quality equipment.
CAMCO adheres to the following service concepts: customer-first and integrity-based, world-class brands, systematization, and standardization of customer service to provide competitive overall service solutions with pre-sales, sales, and after-sales services.
We are devoted and committed to providing durable products and quality service to win the lasting trust and support of our customers.
