| Model | Unit | 1GQN-100 | 1GQN-125 | 1GQN-140 | 1GQN-150 | 1GQN-160 | 1GQN-180 | 1GQN-200 | 1GQN-220 | 1GQN-250 | 1GQN-300 | ||
| 1GN-100 | 1GN-125 | 1GN-140 | 1GN-150 | 1GN-160 | 1GN-180 | 1GN-200 | 1GN-220 | 1GN-250 | 1GN-300 | ||||
| Matched Power | hp | 12-16 | 18-20 | 20-25 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-80 | 80~120 | ||
| Working Width | cm | 100 | 125 | 140 | 150 | 160 | 180 | 200 | 220 | 250 | 300 | ||
| Working Depth | Dry Land | cm | 12-16 | 12-18 | |||||||||
| Paddy Field | cm | 14-16 | 14~20 | ||||||||||
| NO. of Blades | / | 22 | 26 | 30 | 34 | 38 | 50 | 54 | 58 | 62 | 76 | ||
| Type of Blade | / | IT225 | IT245 | ||||||||||
| Total Weight | kg | 200 | 220 | 230 | 240 | 260 | 415 | 430 | 445 | 460 | 520 | ||
| kg | 192 | 210 | 220 | 230 | 248 | 405 | 420 | 435 | 450 | 450 | |||
| Overall Dimension | L | mm | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 | |
| W | mm | 1050 | 1350 | 1500 | 1600 | 1700 | 1900 | 2100 | 2300 | 2600 | 3100 | ||
| H | mm | 950 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | ||
| Linkage | / | Standard Three-point Mounted | |||||||||||

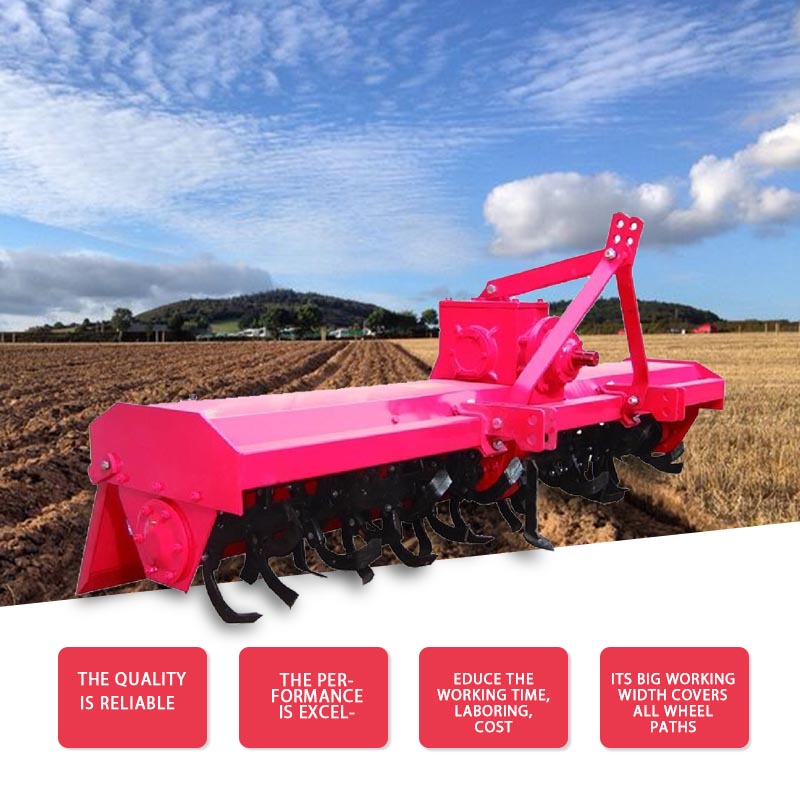

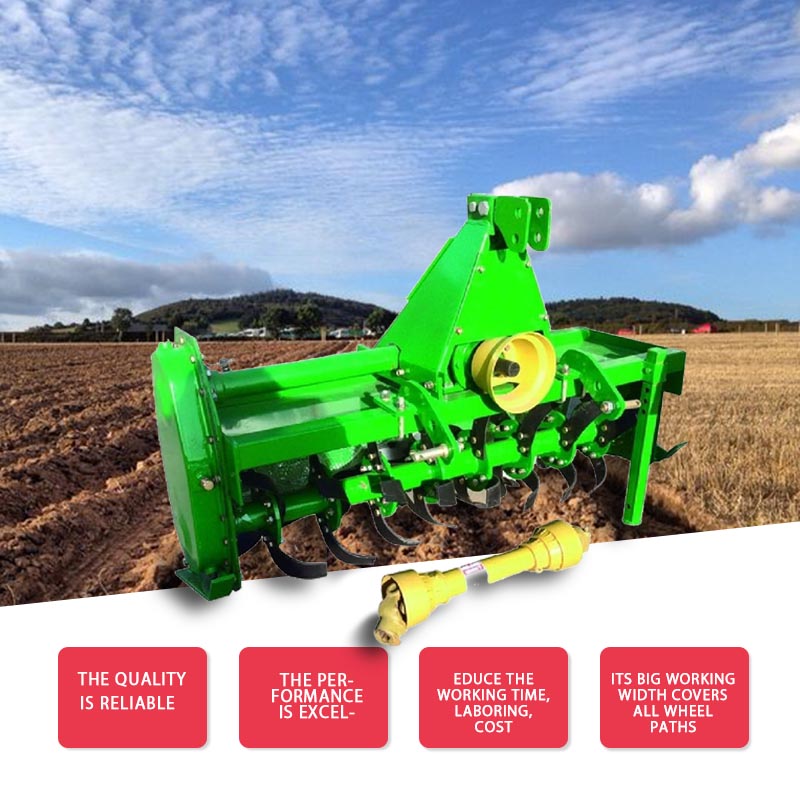

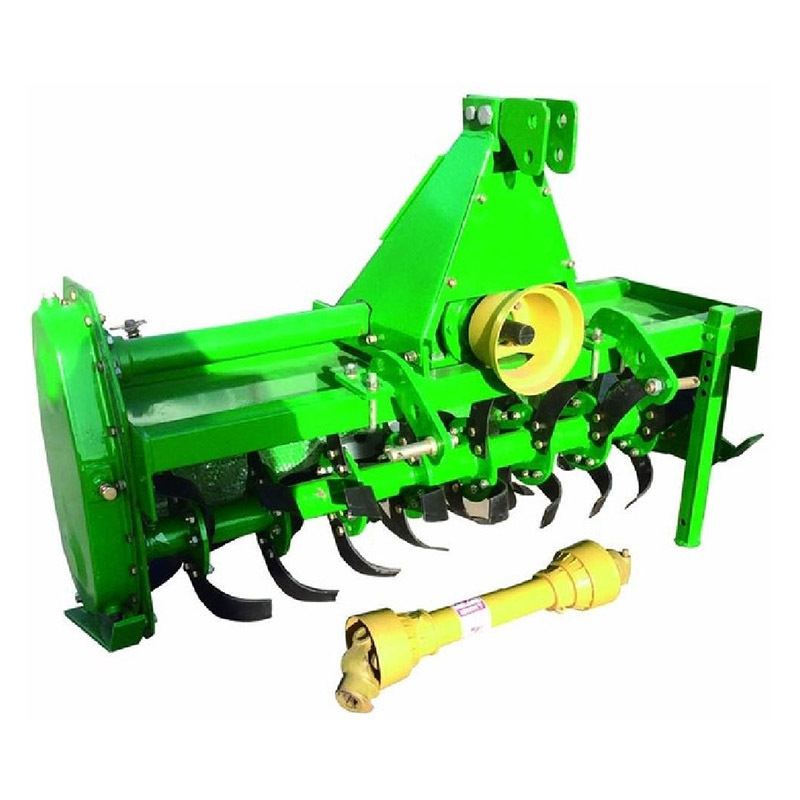

The 1GQN series Rotary Cultivator adopts a middle gear transmission system and is compatible with tractors ranging from 12-80 HP. Its wide working width ensures complete coverage of the tractor's wheel tracks after tillage. With reliable quality and excellent performance, it is suitable for both dry and paddy fields, helping to reduce working time, labor, and costs.
Key Features:
Symmetrical suspension of rotary blades
Full coverage of wheel tracks
Durable construction for efficient operation in various field conditions
