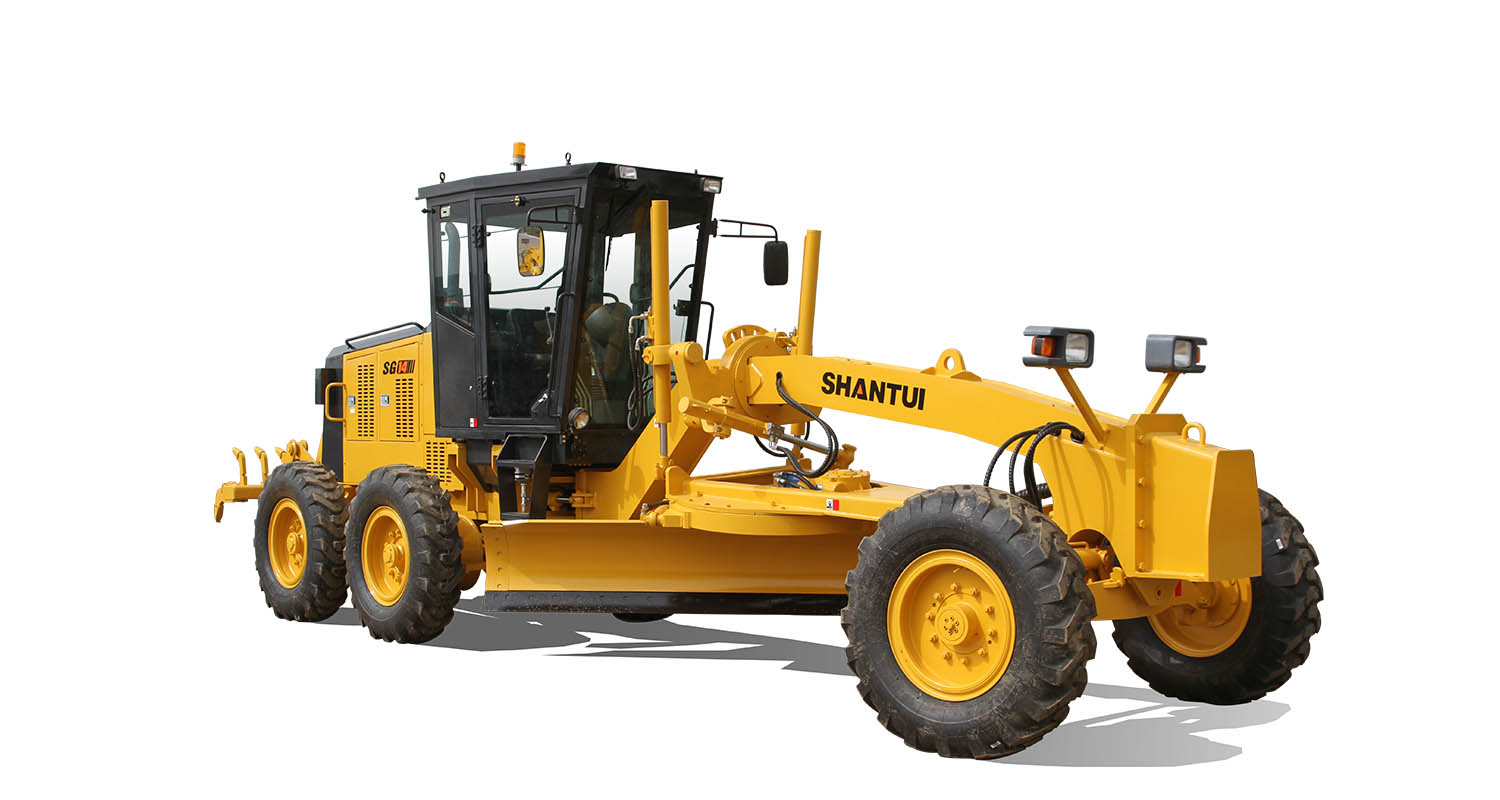

SG Series Grader

SKU:
0.0 (0)
0 Sold
$79,169.00 $0.00
Contact us if the chosen model price shows 99999USD
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • SG Series Grader
  • Description
  • About Camco
  • Purchase Notes

  SG Series Grader has been internally developed, based on the most advanced foreign technologies.
    The working devices employ external gears with high torque transference and a linked swing frame for easy operation. With a large cutting angle on the cutting edges and a strong resistance to external shocks, the working devices are capable of handling high workloads and can operate under the harshest of working conditions.
Model SG21-3
Engine Model Cummins 6CTAA8.3-C215
Engine type In-Line, Water-cooled, 4-cycle, Direct Injection, Turbocharged
Rated Power/Speed 160 kw/2200 rpm
Number Of Cylinders (Bore x Stroke) 6 (114 x 135 mm)
Minimum Fuel Consumption 202 g/kw·h
Gear 1st 2nd 3rd 4th 5th 6th
Forward（km/h） 0~5.4 0~9.4 0~12.2 0~20.5 0~25.4 0~39.7
Reverse（km/h） 0~5.4 0~12.2 0~25.4 – – –
Steering System Type 17.5-25PR14
– Optional tire 17.5-25PR14
– Minimum turning radius（mm） 8200
– Front-wheel tilting angle ±17°
– Front-wheel steering angle ±45°
– Service brake 4-Wheel Pliers-Pan Brake, Full Hydraulic, Foot Brake
Brake System Parking brake Hand Brake With Ratchet Wheel
Total Weight（kg） 17000
Blade Length（mm） 3660/3965/4270
Blade Height（mm） 635
Blade Rotational Angle 360°
Cutting Angle Adjustment Range 44~91°
Maximum Cutting Depth（mm） 500
Cutting Force Per Dozing（kn/m） 25.96/24.47/22.95
Maximum Lift Above Ground（mm） 440
Working Pump Tandem pump
Displacement Of Working Pump（ml/r） 28*2
Working Hydraulic Pressure（mpa） 16
 ●The engine features a reliable performance with high efficiency and energy-saving.
The 6-speed electronically controlled shift hydraulic transmission with ZF technology features reasonable speed ratio distribution to ensure that the whole machine has three working gears at choice to ensure operating reliability and flexibility.
●The extern ring gear adopted features high transmitted torque, a larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.
●Featuring simple operations and high impact resistance against external forces, it’s applicable for working conditions with high operating volume and severe operating environments.
●The full-hydraulic front wheel steering equipped features a small turning radius and high mobility and flexibility.
●The automatic leveling system can be additionally installed.
      We are committed to providing customers with reasonably priced， high-quality equipment.
    Camco adheres to the following service concepts; customer-first and integrity-based, world-class brands, systematization, and standardization of customer service to provide competitive overall service solutions with pre-sales, sales, and after-sales services.
    We are devoted and committed to providing durable products and quality service to win the lasting trust and support of our customers.


    We are committed to providing customers with reasonably priced， high-quality equipment.
    Camco adheres to the following service concepts; customer-first and integrity-based, world-class brands, systematization, and standardization of customer service to provide competitive overall service solutions with pre-sales, sales, and after-sales services.
    We are devoted and committed to providing durable products and quality service to win the lasting trust and support of our customers.

1. About pricing
The price of this product is the delivery price of LUSAKA company, including VAT;
2. About payment
You can pay by TT or online payment. After the payment is completed, please upload the payment voucher in the system;
3. About delivery
Spot Products: Before picking up the goods, please call the offline store 2 days in advance to confirm whether the stocking is complete, and make an appointment for the pick-up time. On the day of pick-up, pick up the goods at the offline store with the payment voucher;
Customized products: We will send the specific delivery time to your email, please pay attention to check.
4. About returns
Spot Products: within 7 days, the product can be returned if the quality and appearance are intact;
Customized products: when the product functions and parameters are consistent with the customized contract, returns are not allowed;
5. About the warranty
For details, please refer to the quality assurance policy published by our company;
6. About the evaluation
We attach great importance to any evaluation given by each customer. If there is any problem, we will deal with it until you are satisfied. Please do not directly give a medium or poor evaluation without communicating with customer service.
Commitment of CAMCO
1. We provide you with invoices and corresponding offline pre-sales training and after-sales service. Please rest assured to buy!
Note: Since the manufacturer will change the product packaging, origin, or some attachments without any prior notice, the company cannot ensure that the goods received by the customer are completely consistent with the pictures, origins, and attachment descriptions of the mall. If this mall is not updated in time, please understand!
------
●Safety Warning:
Do not use chat tools other than this mall to communicate during the transaction, do not receive suspicious files and do not click on links from unknown sources, and verify the domain name and payment details before payment. Except for online direct payment, the CAMCO company account is the only transfer account. CAMCO will not ask you to provide any bank card, password, or mobile phone verification code if there is a problem with the order! In case of a suspicious situation, please call CAMCO for verification.

●Price Description
1. All prices are the tax-included delivery prices of Lusaka. Pickup in other areas requires an appropriate increase in price according to the transportation situation. If you need to pick up the goods in areas other than LUSAKA, please confirm the transportation price with the customer service staff before placing an order.
2. The fixed price, promotional price, preferential price, and other prices marked in pictures or text on the merchant details page (including the main picture) may be the price when using coupons, full discounts, or specific promotional activities and time periods. For details, please The price, preferential conditions, or event rules on the settlement page shall prevail.

●Declaration Of Rights:
1. All CAMCO product information, customer evaluation, product consultation, netizen discussion, and other content are important business resources, and illegal reprinting and use without permission are prohibited.
Note: The product information on this site comes from the partner. This site does not provide any guarantee and does not assume any legal responsibility
