Description
About Camco

The F2000 series heavy-duty trucks, with over 30 years of reputation, perfect for even the most difficult tasks, bring unprecedented value to its users.

Trailer Truck	Dump Truck
4×2, 6×4、6×6	6×4、8×4
Lengthened High Roof (N)	Lengthened High Roof (N)
Lengthened Flat Roof (J)	Lengthened Flat Roof (J)
Mid-length Flat Roof (D)	Mid Length Flat Roof (D)
WP10、WP12	Weichai Power WP10, WP12
Euro II, III, IV, V	Euro II, III, IV, V
FAST F9, F10, F12 Series	Manual Transmission 8F, 9F, 10F
FAST F9, F10, F12 Series	Automatic Transmission
ETONФ430 Diaphragm Imported Or Chinese Manufactured	ETONФ430 Diaphragm Imported Or Chinese Manufactured
7.5 Ton MAN Drum Type	7.5 Ton MAN Drum Type
7.5 Ton MAN Plate Type	6.5 Ton STR Double Front Axle
6.5 Ton Steyr	8 Ton STR Double Front Axle
－	6.5 Ton STR
13 Ton Steyr Double Stage Enhanced (Drum)	16 Ton STR Double Stage Casting (drum)
13 Ton MAN Double Stage Punch Welding (Drum)	16 Ton MAN Double Stage Casting (drum)
13 Ton MAN Single Stage Punch Welding (Drum)	－
Multi-Leaf Spring Configuration	Multi-Leaf Spring Configuration, 4 Main Piece + 2 U-bolts or 4 U-bolts
780243（8+5）、850300（8+7）	850*300（8+7）
300 / 400 / 600 Liter Aluminum	200 / 300 Liter Steel
380 Liter Steel	300 / 400 Liter Aluminum
－	400 Liter Flat Aluminum
12.00R20, 11.00R20, 12.00R22.5, 11.00R22.5	11.00R20、12.00R20
Regular 90 Saddle, Enhanced 90 Saddle, Lightweight 90 Saddle	11.00R20、12.00R20

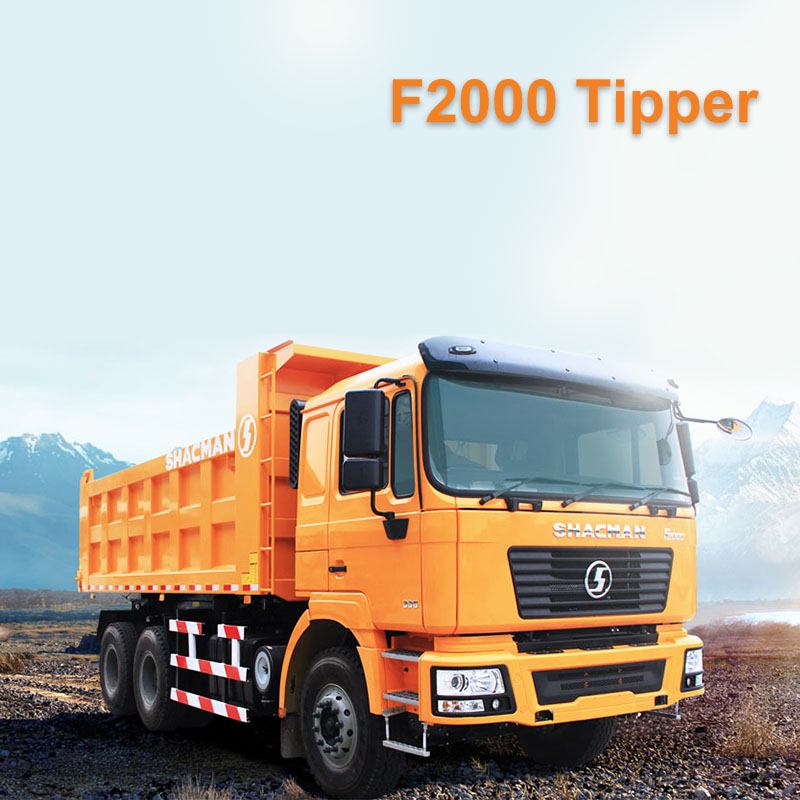

Main Specifications Of SHACMAN F2000 6X4 Dump Truck
Model		SX3255DR384
Driving Type		6×4
Wheelbase (mm)		3775+1400
Curb Weight (kg)		12370
Gross Weight (kg)		25000
Overall Dimension (mm)	L	8495
	W	2500
	H	3450
Max. Speed (km/h)		78
Engine Model		WEICHAI WP10.340E32
Rate Power		340HP
Emission Standard		EURO II
Engine Displacement(L)		9.726
Quantity Of Axle		3
Gearbox		US Eaton Fuller Technology, FAST,9JS135T-B, 9 Forward Gears, 1 Reverse Gear, With Synchronizer
Tire		12.00R20
Fuel tank Capacity(L)		400L, Aluminum
Cab		German MAN technology, F2000 D Cabin, one Sleeper,
		Hydraulic Seat For Driver, Electric Window Glass Lifter, With A/C, Hydraulic Cabin Suspension
Front Axle		German MAN technology, HANDE, MAN 7.5T front axle
Rear Axle		German MAN Technology, HANDE, STR 16T Rear Axle, Hub Reduction, Ratio 5.73
Fuel Kind		DIESEL
Other Equipment		Manual Cab Tilting, Aluminum Reservoir, 165Ah Free-maintenance Battery, Desert Air Filter
Body		Dump Box,5600x2300x1500 mm, Bottom 10mm Side 8mm, HYVA 137 Front Lifting Hydraulic Cylinder
QUALITY		100PCT BRAND NEW. PRODUCED IN 2018
CIF,SHV Port Price(USD)		26,000-30,000

Road-type		On-road
Max.Weight		≤50T
Max.Speed		70
Vehicle Model		SX3255PR404
Engine		WP10.340E22
Emission Standard		EURO II
Displacement		9.762L
Rated Output(kw)		250
Clutch		430
Frame		850x300(8+7)
Front Axle		MAN7.5T
No.of Axles		3
Axle Distance		3975+1400
Rear Axle		16T MAN Double Reduction 5.262
Tire		12.00R20
Suspension		Multi-Leaf Springs
Maximum Design Total Mass(kg)		25000
Maximum Design Pay Mass(kg)		12500
Fuel		Diesel

1. Experienced Engineering
Lightweight world advanced design concept, inheriting the company's military qualities and over 41 years of manufacturing experience. Built to meet even the toughest demands and set the bar for safety and efficiency.
  This series of vehicles utilize Weichai engines, a few leaf springs, a lightweight high-strength frame, rubber suspension, and other advanced technologies.
  Utilizes WEVB engine exhaust-breaking patented technology which increases braking efficiency by more than 55%.
2. Superior Quality
The cabin utilizes high-strength materials, left and right side doors are equipped with high-strength anti-collision beams, passed ECE-R29 crash test certification, lower floor ensures the most driving room.
  Innovative use of a lightweight high-strength frame. Utilizes advanced Austria CRUISE software.

We are committed to providing customers with reasonably priced， high-quality equipment.
Camco adheres to the following service concepts; customer-first and integrity-based, world-class brands, systematization, and standardization of customer service to provide competitive overall service solutions with pre-sales, sales, and after-sales services.
We are devoted and committed to providing durable products and quality service to win the lasting trust and support of our customers.

We are committed to providing customers with reasonably priced, high-quality equipment.
CAMCO adheres to the following service concepts: customer-first and integrity-based, world-class brands, systematization, and standardization of customer service to provide competitive overall service solutions with pre-sales, sales, and after-sales services.
We are devoted and committed to providing durable products and quality service to win the lasting trust and support of our customers.
