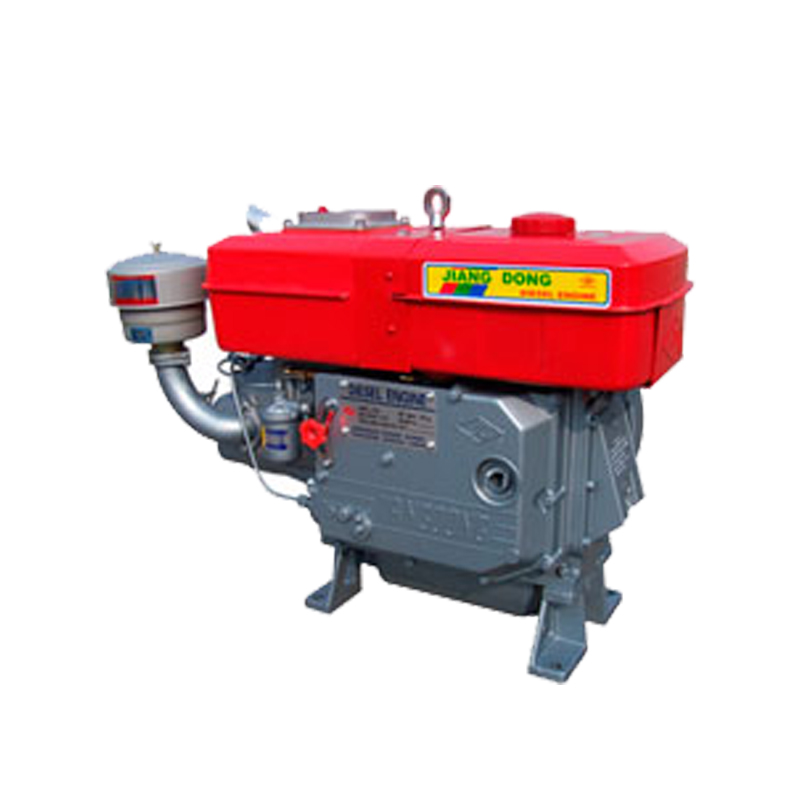

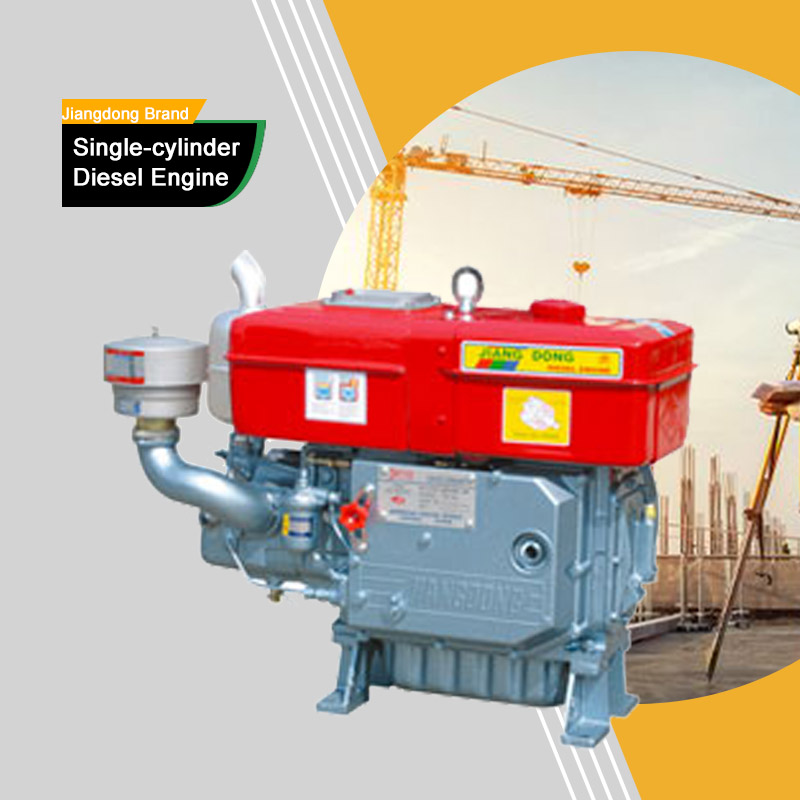

Jiangdong Single-cylinder Diesel Engine

Name: Jiangdong Single-cylinder Diesel Engine
Brand: CAMCO MALL
Price: 99999 USD
Availability: InStock

0.0 (0)

0 Sold

$99,999.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Model:

MS150-3.0

MS150-4.0

MS150-5.5

MS150-7.5

MS150-9.2

MS150-11

MS150-13

MS150-15

MS150-18.5

MS150-22

MS150-26

MS150-30

MS150-37

Quantity:

Add to Favorites (0)

Description
About Camco
Purchase Notes

Main Technical Paraments

The single-cylinder air-cooled diesel engine is deeply loved by users for its lightweight, small size, simple layout, and convenient maintenance, and is widely used as supporting power for micro tillage machines.
ZS-model parameters：

Model	ZS195	ZS195N	ZS195D	ZS195ND	ZS195WP
Model	S195B2	S195B2 N	S195B2 D	S195B2 ND	S195B2 WP
Type	Single-cylinder, Horizontal, Four-cycle
Combustion System	Direct Injection
Bore x Stroke	95×115	95×115	95×115	95×115	95×115
Displacement	0.815	0.815	0.815	0.815	0.815
Compression Ratio	17:01
Output/Speed	12/2000	12/2000	12/2000	12/2000	12/2000
Max.Output/Speed(HP/rpm)	14/2000	14/2000	14/2000	14/2000	14/2000
Cooling System	Evaporative	Radiator	Evaporative	Radiator	Evaporative
lubrication System	Combined Pressure and Splash
Starting Method	Hand Cranking	Hand Cranking	Starting Motor	Starting Motor	Hand Cranking
Fuel Tank Capacity	14.5	16	14.5	16	14.5
Fuel Consumption(g/HP-Hour)	≤190	≤195	≤190	≤195	≤190
Continuous Operating Hours(h)	5.5	5.9	5.5	5.9	5.5
Package Size(LxWxH)	900x440x760
Gross Weight(kg)	173	181	188	196	181
Net Weight(kg)	155	161	168	176	161

Z-series model parameters：

Model	S1100	S1100N	S1100D	S1100N D	S1100WP
Model	S1100B2	S1100B2 N	S1100B2 D	S1100B2 N D	S1100B2 WP
Type	Single-cylinder, Horizontal, Four-cycle
Combustion System	Vortex Chamber
Bore x Stroke(mm)	100×115	100×115	100×115	100×115	100×115
Displacement	0.903	0.903	0.903	0.903	0.903
Compression Ratio	20:01
Output/Speed(HP/rpm)	16/2200	16/2200	16/2200	16/2200	16/2200
Cooling System	Evaporative	Condensing	Evaporative	Condensing	Evaporative
lubrication System	Pressure And Splash Lubrication
Starting Method	Hand Cranking	Hand Cranking	Starting Motor	Starting Motor	Hand Cranking
Gross Weight(kg)	155	155	160	160	160
Package Size(mm) L	900	900	900	900	900
Package Size(mm) W	440	440	440	440	440
Package Size(mm)H	760	760	760	760	760

Each working cycle of a single-cylinder diesel engine goes through four processes: intake, compression, work, and exhaust. In a working cycle, only one stroke is doing work, while the other three strokes are auxiliary strokes that create conditions for the work stroke.
In construction engineering, the single-cylinder diesel engine is also a commonly used power device.
They are used in concrete mixers, water pumps, generator sets, and other equipment to provide power support for construction projects.

Advantages

This Jiangdong brand single-cylinder diesel engine is cheap, easy to maintain, has good stability, high power, low fuel consumption, and high reliability.
