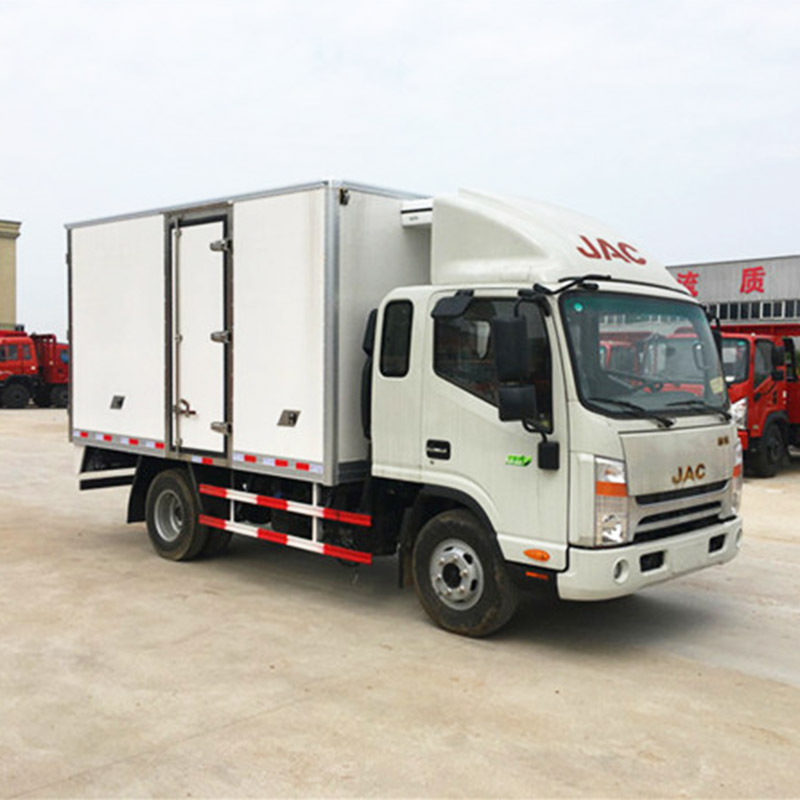

| Product Name | Jianghuai Shuailing Wide-body Row Half 3 Meters 7 Refrigerated Truck |
| Chassis Model | HFC1043P71K1C2V |
| Front Passenger | 3 |
| Total Mass(kg) | 4495 |
| Rated Mass(kg) | 1215 |
| Curb Weight(kg) | 2805 |
| Emission Standards | GB17691-2005,GB3847-2005 |
| Vehicle Description | Chassis configuration: JAC Shuailing wide-body semi-new cab, using JAC Isuzu HFC4DE1-1D diesel engine, 112 kW, 152 horsepower, front disc and rear drum, with original steering power, cab with air conditioning, electric doors and windows, central lock, Multifunction steering wheel. 6-speed gearbox, 3360 wheelbase, 7.00R16 steel tires, fuel, air brake. |
| Box configuration: refrigerated box size: 3685×2060×2000 is about 15.2 cubic meters. The thickness of the box is 8 cm. Both inside and outside are made of special glass fiber reinforced plastic for refrigerated vehicles (can reflect sunlight), the middle interlayer is made of polyurethane foam insulation material, (fire-retardant, flame-retardant and heat-insulating) vacuum composite bonding, and the configuration box is all stainless steel locks. Stainless steel corners, stainless steel door frame. The compartment has high airtightness, good heat preservation effect, beautiful appearance, firmness and durability. | |
| Refrigeration unit: use Chinese brand Hanxue or Huatai refrigeration unit (imported units can be selected from Korean Hana, American Carrier, etc.), the refrigeration effect is good, the lowest temperature can reach -15 degrees, and can be adjusted freely according to demand. | |
| Vehicle certification: Class II automobile chassis qualification certificate, factory vehicle qualification certificate. National unified household invoices for motor vehicles, vehicle instruction manuals and quality assurance manuals, refrigeration unit instruction manuals and quality assurance manuals, national service station directory, etc. | |
| HFC5043XLCP71K1C2V Type Refrigerated Truck Chassis Parameters | |
| Chassis Model | HFC1043P71K1C2V |
| Number Of Axes | 2 |
| wheelbase(mm) | 3308 |
| Number Of Tires | 6 |
| HFC5043XLCP71K1C2V Type Refrigerated Truck Chassis Parameters | |
| Engine Model | HFC4DE1-1D |
