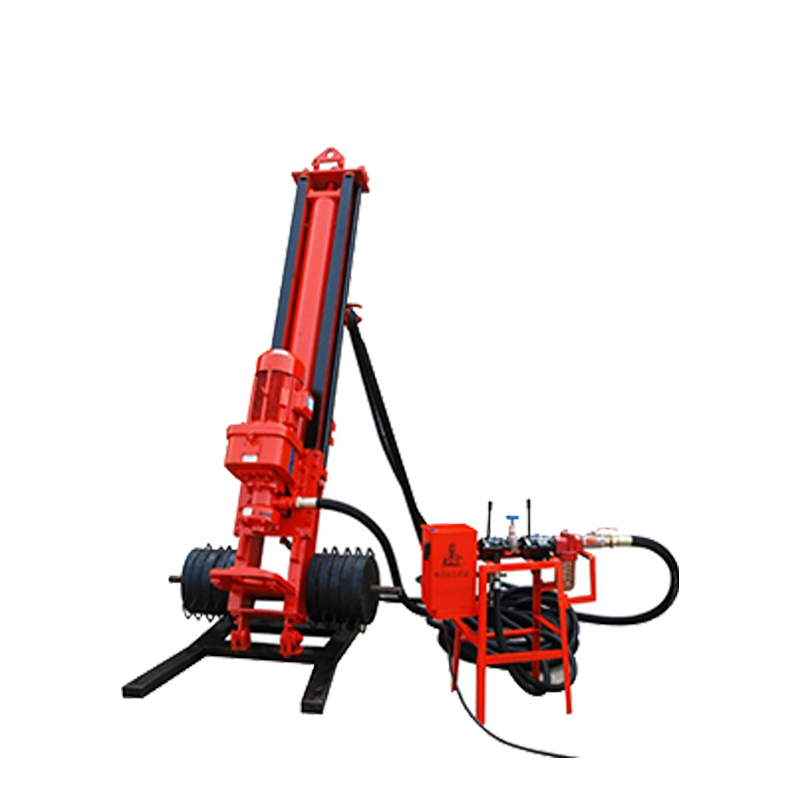

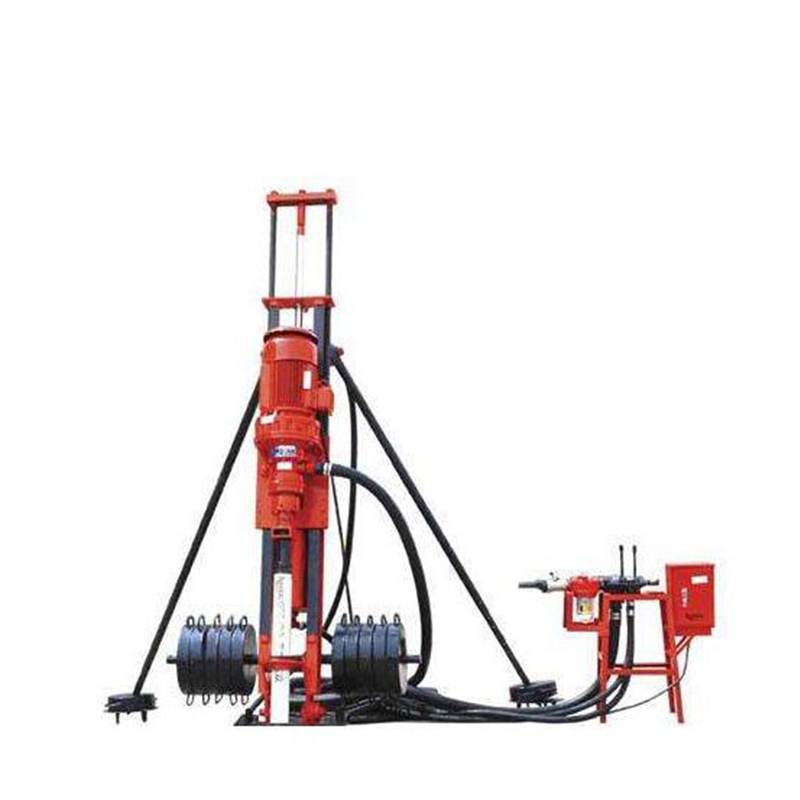

"Kaishan brand" Down-The-Hole Drilling Rig

SKU:
0.0 (0)
0 Sold
$99,999.00 $0.00
Contact us if the chosen model price shows 99999USD
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Kaishan Brand:
    KQY90
    KSZ100
    KQD100
    KQD70
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • "Kaishan brand" Down-The-Hole Drilling Rig
  • "Kaishan brand" Down-The-Hole Drilling Rig
  • "Kaishan brand" Down-The-Hole Drilling Rig
  • Description
  • About Camco
  • Purchase Notes
    "Kaishan brand" down-the-hole drilling rig series products are innovatively designed according to the characteristics of Chinese mines, with novel structures, high efficiency, and energy saving.
     It is widely used in blast-hole rock drilling operations in small and medium-sized mines, national defense, water conservancy, road construction, and stone works. It is an ideal tool for realizing layered mining and medium and deep hole blasting.
Model Drilling Diameter Drilling Depth One Push Length Use Air Pressure Air Consumption Maximum Lift Remark
mm m m MPa m³/min KN
KQY90 80-130 ≥20 1 0.5-0.7 7 15 Air & Hydraulic
KSZ100 80-130 ≥20 1 0.5-0.7 12 9.6 All Air
KQD100 80-130 ≥20 1 0.5-0.7 7 9.6 Motor Drive
KQD70 60-80 ≥15 1 0.5-0.7 ≥3.5 3600 Motor Drive
1. The hydraulic design technology is innovatively applied to the light down-the-hole drilling rig, which is highly efficient and energy-saving.
2. Driven by a hydraulic motor, the rotary torque is large, and it is not easy to jam.
3. It adopts oil cylinder propulsion, and the lifting force is strong, which is beneficial to medium and deep hole drilling.
4. The unique drilling frame locking mechanism ensures accurate and consistent drilling angles.
5. The unique counterweight device makes the drilling rig work stably, reliably, and without displacement.
6. Energy-Efficient Electric Drilling Rig.
7. It is economical, efficient, and energy-saving with the ordinary motor as the rotary power.
8. Cycloidal pin gear reducer is adopted, which has large rotary torque and high rock drilling efficiency.
9. Novel overload protection makes the drilling rig run stably and reliably.
There are three types of supporting structures: single top, double top, and support, which can adapt to any geological and landform.
10. Highly adaptable all-pneumatic drilling rig.
11. Propulsion, rotation, and impact are all driven by compressed air, with simple structure, single power, and convenient relocation.
12. There are three types of support structures available: single top, double top, and pedestal, which can adapt to any geological and landform.
13. The operating mechanism is concentrated, and the operation is convenient and quick.
14. The unique double muffler has a good noise reduction effect and reduces environmental pollution.
