Lovol tractor is a tractor belonging to Foton Lovol Agricultural Equipment. So far, 80,000 exported tractors have been successfully delivered. Lovol tractor adopts a fully hydraulic steering system with a double-acting clutch and reinforced chassis with strong bearing capacity. Lovol tractor adopts a patented enhanced front axle with high reliability, high sealing performance, better paddy field operation performance, optional adjustable wheelbase, strong pressure lifter, shuttle gear shift, climbing gear, etc., which can meet various operational needs.
Cab: Standard configuration safety shelf and cab with EC and OECD certifications, and compatible configurations are third generation car body with European design, fully-wrapped interior, steering wheel adjustable fore and aft, car air conditioning system, and Grammer seat which fully improve manipulation comfort.
Gearbox: Standard configuration:16F+8Rsyncro shift, options: 8F+8R, 16F+8R shuttle-shift, and 16F+8R creeper shift.16F+8R main speed synchronized gears shift which are reliable, energy saving, and comfortable.
Fuel tank: Standard configuration main and auxiliary double fuel tanks have a capacity of up to 145L.
Lifting system: The standard configuration is location independently adjusting lifter. A powerlifter is for option whose maximum lifting force may reach up to 4500kg.
Instrument cluster: Adoption of the new U.S.A ACTUANT instrument cluster gives advantages of high sealing performance and multi-information integrated display.
Engine: The Lovol 4-cylinder in-line engine inherits the excellent technology of the Perkins engine and adopts a turbocharging system, so it has reliable performance and strong power.

Model		Unit	TD754	TD824	TD904	TD954	TD1004
Engine			LOVOL ENGINE	LOVOL ENGINE	LOVOL ENGINE	LOVOL ENGINE	LOVOL ENGINE
Rated Engine Power ISO TR14396-ECE R120		hp/kW	75/55.1	82/60.3	90/66.2	95/69.9	100/73.5
Type			4 cylinders diesel
Rated Engine Speed		rpm	2200	2200	2200	2200	2200
Max. Torque ISO TR14396		Nm	>263	>288	>350	>360	>380
Rated PTO Power		kW	46.7	51.3	56.3	59.5	62.5
Displacement		ltr	4	4	4	4	4
Fuel Tank Capacity		ltr	145
Transmission
Dry Dual Clutch (Ceramic disk)		in.	12	12	12	12	12
8F+4R Collar Shift			○	○	○	○	○
8F+8R Shuttle Shift			○	○	○	○	○
16F+8R Shuttle shift			●	●	●	●	●
16F+8R Creeper Shift			○	○	○	○	○
16F+8R Synchro Shift			○	○	○	○	○
Speed Range		km/h	8F+4R Collar Shift： Forward（2.2~33.3）/ Reverse（3.0-10.3）； 8F+8R Shuttle Shift： Forward（0.2~33.3）/ Reverse（2.2-33.2）； 16F+8R Shuttle shift： Forward（1.5~32.2）/ Reverse（2.3-33.2）； 16F+8R Creeper Shift: Forward（0.4~33.3）/ Reverse（0.6-10.3）； 16F+8R Synchro Shift: Forward（1.7~33.3）/ Reverse（2.4-21.4）。
Differential Lock			●	●	●	●	●
Power Take-Off 540/1000 rpm			●	●	●	●	●
Power Take-Off 760/1000 rpm			○	○	○	○	○
Power Take-Off 540/760 rpm			○	○	○	○	○
Brakes
Type			Wet disc, Static hydraulic control
Parking Brake			Independent Hand Brake
Air Trailer Brake			○	○	○	○	○
Front Axle
4WD Front Axle			●	●	●	●	●
2WD Front Axle			○	○	○	○	○
Steering Angle		°	30	30	30	30	30
Turning Radius Without Brake		m	4WD：4.2±0.3，2WD:4.9±0.3
Turning Radius With One Side Brake		m	4WD：3.6±0.2，2WD:4.0±0.2
Hydraulic Power Lift
Type			Combined Control on Force and Position, Floating Control
Cat. 2 Three Point Hitch			●	●	●	●	●
Hydraulic Flow		l/min	33/41(powerful lifter)
Lift Capacity at Lift Point		kg	Semi-separated：≥2500 Separated：≥4500
Lift Capacity at 610mm behind Hitch Point		kg	Semi-separated：≥1500 Separated：≥2000
No. of Remote Valves			2	2	2	2	2
Cab and Driving Seat
ROPS			●	●	●	●	●
Full-view Cab			○	○	○	○	○
Air Conditioning			○	○	○	○	○
Suspended Platform			●	●	●	●	●
Tires and Weights
Front Tires	Standard		11.2-24
Front Tires	Optional		12.4-24/13.6-24/12.4R24
Rear Tires	Standard		16.9-34
Rear Tires	Optional		18.4-30/18.4-34/13.6-38/13.6-38(paddy land tires)/18.4R30
Structure Weight（ROPS ）*		kg	3615	3615	3615	3615	3615
Structure Weight（Cab ）*		kg	3915	3915	3915	3915	3915
		Key:	● Standard	○ Optional	* Tractor Dry Mass

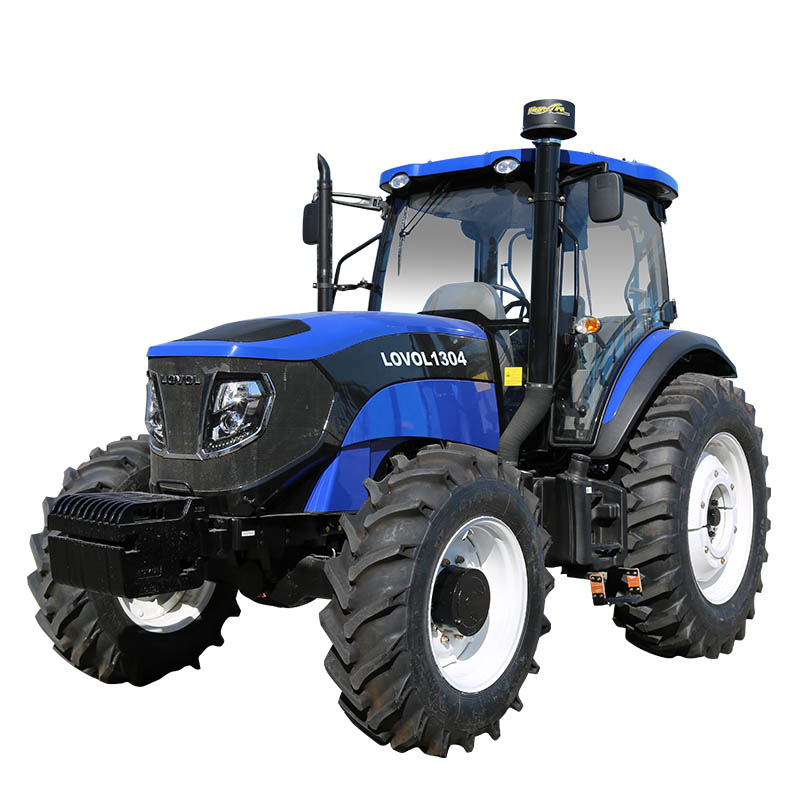

TD1304:

Model	TD1304
product platform	Three generations of Lovol
horsepower	130
drive form	four-wheel drive
Engine/Make/Model	Shangchai Engine SC7H150G2B
Safety frame/cab/air conditioner	air-conditioned cab
Shift mode	Synchronizer
Number of stalls	16F+8R
Front/rear counterweight	normal/floor
clutch	14-inch LUK
Steering	Cycloid rotary valve type full hydraulic steering gear
Front and rear tire size	14.9-26/18.4-38
Dimensions (mm)	506022852984
wheelbase	2700
Structural mass (kg)	5050
Exterior Color	black
brake form	wet hydraulic brake
Type of suspension	Rear three-point suspension, category 11
With several valves	Multiple hydraulic output
traction form	pendulum
Differential	Closed, 4 planetary bevel gears

Advantages

Dynamic and fashionable Appearance
Enclosed mudguard and rear wall inner trims
Saloon-car air conditioner
Human-orientated arrangement
Rear lamp with technological feeling
Adjustable steering wheel
