Pedestal Grinder

Name: Pedestal Grinder
Brand: CAMCO MALL
Price: 99999 USD
Availability: InStock

0.0 (0)

0 Sold

$99,999.00

The price above is FOB China price.
Please contact our local branches in Africa for precise prices.
If the price is $99999, please contact us for precise prices.

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (0)

Description
About Camco

Model	Unit	ZX7020	ZX7025	ZX7032	ZXD-40	ZX7045	ZX-40A	ZX-40SD	ZXJ7016	ZXD7020
Hole Diameter	mm	20	25	31.5	40	45/28	40	31.5	16	20
End Milling Width	mm	50	63	80	80	80	80		50	50
End Milling Diameter	mm	12	13	22	28	28	28		12	12
Spindle Travel	mm	115	90	130	120	120	120	120	115	115
Distance From Spindle Centerline To Column Surface	mm	240	202	202	272.5	260	260	272.5	240	240
The Maximum Distance From The Spindle End To The Table Surface	mm	450	380	450	500	475	490	820	307	555
The Maximum Distance From The Spindle End To The Base Table	mm	－	－	－	1230	－	－	1250	－	－
Spindle Taper	－	MT.2	MT.3	MT.3/R8	MT.4	MT.4	MT.4/R8	MT.3/R8	MT.2	MT.2
Spindle Speed Range	rpm	215-2000	100-2150	100-2150	80-1760	95-1600	80-1760	95-1600	235-2050	85-2400
Spindle Speed Series	－	5	12	12	6	6	6	6	5	12
Table Size	mm	590x190	585X190	730x210	730x210	820x240	730x210	540x470	430x200	560x200
Table Travel	mm	370x145	370X145	500x175	500x200	550x200	500x175	680x450	236xl28	270xl40
Total Height	mm	1000	930	1100	1765	1040	1100	1750	967	1590
Headstock Lifting Stroke	mm	350	300	315	340	410	410	－	300	400
Electric Motor	mm	750	750	1500	1100	750	1100	1100	550	550
Gross/net Weight	kg	220/180	245/220	310/285	470/400	340/305	330/285	360/305	190/160	210/ 160
Package Dimensions (LxWxH)	cm	93x93x100	76x97x103	108x77x120	－	－	100x77x114	93x74x171	97x56x99	81x78x129

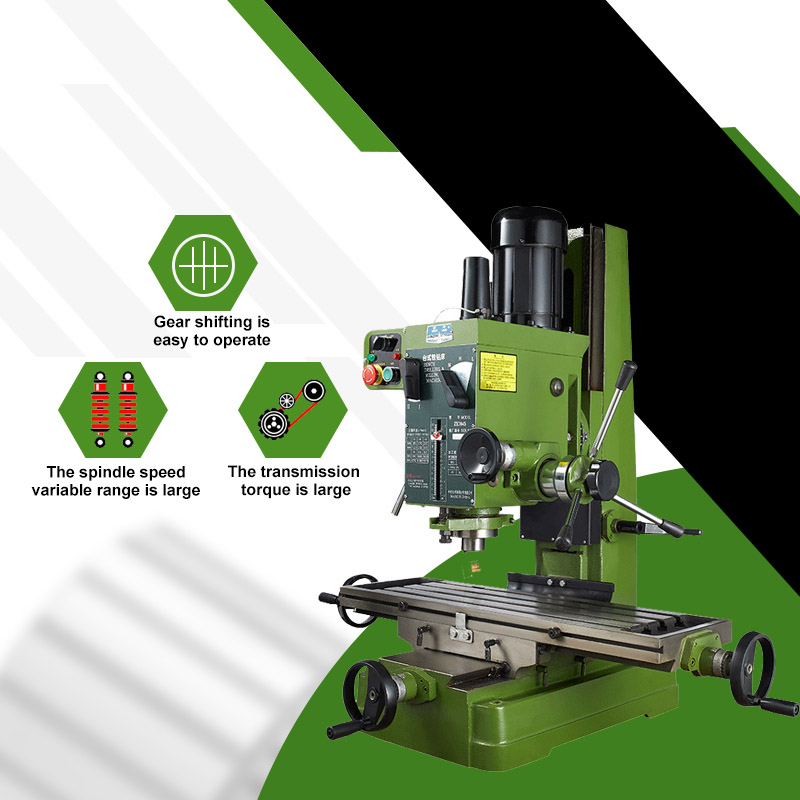

1. Gear shifting is easy to operate
2. The spindle speed variable range is large.
3. The transmission torque is large.
4. The spindle box can rotate around the bracket, which is very beneficial to the processing of shoe upper holes.

We are committed to providing customers with reasonably priced, high-quality equipment.
CAMCO adheres to the following service concepts: customer-first and integrity-based, world-class brands, systematization, and standardization of customer service to provide competitive overall service solutions with pre-sales, sales, and after-sales services.
We are devoted and committed to providing durable products and quality service to win the lasting trust and support of our customers.
