Name: Plasma Cutting Machine
Brand: CAMCO MALL
Price: 99999 USD
Availability: InStock

There are several advantages to using plasma cutting for metal fabrication compared to other methods, ranging from cost-effectiveness to higher productivity and better cut quality. Here are some other advantages.
1. High-cutting quality
Cutting with a plasma cutter provides a higher cut quality for metals than other metal fabrication processes, such as oxyfuel cutting and waterjet cutting.
This is due to the fact that there is no residual dross on the edge of the metal cu,t and the area of the heat-affected zone is small.
2. Versatility and flexibility
This process can cut through any metal that conducts electricity, making it very versatile. It can easily cut medium and high-thickness aluminum, high-alloy steel, and other metals.
It's great for groove cutting, planning, or marking metal. In addition, the process can cut metal in water with reduced noise levels.
3. High speed
Plasma cutting is 100 times faster than laser cutting and about 10 times faster than oxyfuel cutting. In other words, it increases productivity and reduces the time it takes for metal fabrication compared to other methods.
4. Greater Accuracy and Repeatability
Parts are cut with greater precision and surface quality due to the heat involved in the process. Additionally, manufacturing speed increases repeatability while reducing the time spent machining metal.

We are committed to providing customers with reasonably priced, high-quality equipment.
CAMCO adheres to the following service concepts: customer-first and integrity-based, world-class brands, systematization, and standardization of customer service to provide competitive overall service solutions with pre-sales, sales, and after-sales services.
We are devoted and committed to providing durable products and quality service to win the lasting trust and support of our customers.

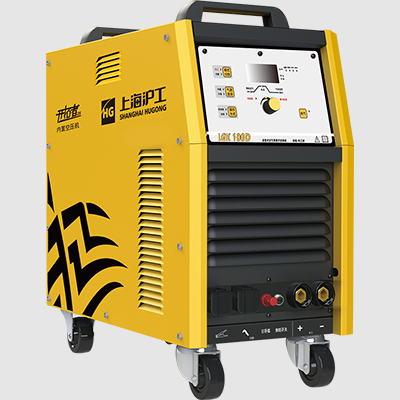

Product Model	LGK100D
Input Voltage	1~220/3~380
Rated Input Capacity	9.2
Input Current	220V 42A/380V26A
Effective Current	32.5A/20A
Output No-load Voltage	220V：330V/380V:290V
Output No-load Voltage	220V：78V/380V:68V
Current Adjustment Range	220V：20~50V/380V:20~80V
Current Adjustment Range	220V：30~200/380V:30~250A
Duty Cycle	220V：100%,@50A；380V:60%,@80A
Duty Cycle	220V：60%,@200A；380V:60%,@250A
Product Size	560290520
Standard Packing Size	670420612
Bare Metal Weight	43
Standard Gross Weight	49
Plate Thickness	Carbon Steel, Stainless Steel<28;Aluminum And Alloy<15Copper And Alloy<10

1. Dual functions of cutting and manual welding, one machine with multiple functions.
2. A double choice of air source, built-in air pump, and external air pump are available.
3. The arc energy is highly concentrated, with good stability and strong cutting force.
4. Beautiful incision, everything to the end. The cutting surface is clean and tidy.
5.5 times cutting speed, the deformation of the workpiece is small.
Accurate preset current, stepless adjustable, efficient cutting of various workpieces.
6. Low noise and strong adaptability.
High efficiency and energy saving, prolonging the service life of the equipment.
7. Dual voltage intelligent switching, household/industrial power plug and play.
8. Non-contact arc ignition is easy to operate and saves consumables.
9. Full-bridge inverter technology to improve over-current damage to power converters.
10. Digital chip control, refined waveform, and improved dynamic response.

We are committed to providing customers with reasonably priced， high-quality equipment.
Camco adheres to the following service concepts; customer-first and integrity-based, world-class brands, systematization, and standardization of customer service to provide competitive overall service solutions with pre-sales, sales, and after-sales services.
We are devoted and committed to providing durable products and quality service to win the lasting trust and support of our customers.

Model	LGK-70W	LGK-100E
Input voltage（V）	380	380
Rated Input Capacity(kVA)	9.3	31
Output No-load Voltage(V)	315	284
Current Adjustment Range(A)	25-70	20-100
40℃ 40% Duty Cycle(A)	70	100
40℃ 100% Duty Cycle(A)	44.3	100
Weight（kg）	17	30
Standard Packing Size (mm)	505x240x404	570320440
Base material	Carbon Steel, Mild Steel, Alloy Steel, Stainless Steel, Aluminum, Copper	570x320x440
Plate Thickness	<22.0mm	40

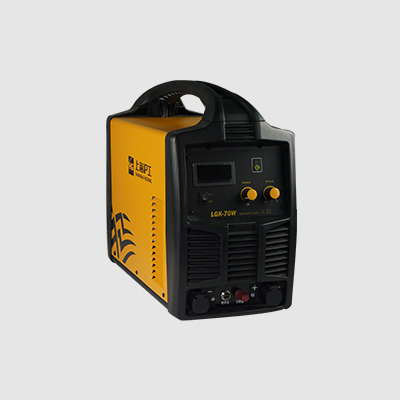

LGK70W
1. Adopt mature IGBT single-tube control technology, high inverter frequency, energy saving, and power saving.
2. The current preset function of the digital display meter is fashionable.
3. Small size, lightweight, easy to carry, especially suitable for outdoor work.
4. Plastic panel, high-grade appearance, strong market competitiveness.
5. Convenient plug-in function, fast, safe, and simple connection.
6. Built-in overheat protection function, safe and reliable operation.
7. High-frequency arc ignition with the pilot arc.

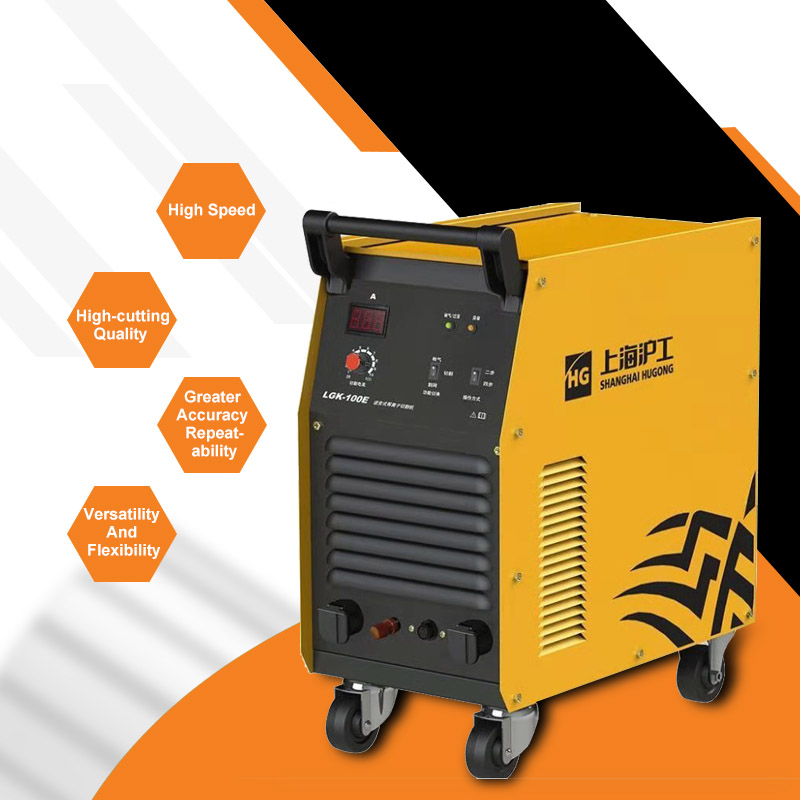

LGK 100E
1. High-frequency non-contact arcing.
2. Current preset, digital display.
3. IGBT module inverter technology.
4. It has self-locking and non-self-locking functions.
5. With gas detection function.
6. It has the function of cutting grid profiles.
7. With overcurrent, overheating, and low-pressure protection functions.

We are committed to providing customers with reasonably priced， high-quality equipment.
Camco adheres to the following service concepts; customer-first and integrity-based, world-class brands, systematization, and standardization of customer service to provide competitive overall service solutions with pre-sales, sales, and after-sales services.
We are devoted and committed to providing durable products and quality service to win the lasting trust and support of our customers.

Model	LGK-125W	LGK-160W
Input Voltage(V)	380	380
Rated Input Capacity(kVA)	19	26.3
Output No-load Voltage(V)	340	340
Current Adjustment Range(A)	20-125	30-160
Cutting Current Duty Cycle100%(A)	125	160
Weight（kg）	43.2	48
Standard Packing Size LxWxH (mm)	740x405x805	740x405x805
Applicable Cutting Material(mm)	Carbon Steel, Stainless Steel, Alloy Steel, Copper, Aluminum, Titanium, Nickel
Carbon Steel, Stainless Steel Cutting Thickness(mm)	40	50
Copper And Alloy Cutting Thickness(mm)	20	25
Copper And Alloy Cutting Thickness(mm)	15	18
Required Inlet Gas Pressure(MPa)	0.45	0.5
Recommended Air Compressor Specifications	Exhaust Pressure≥0.8MPa; Displacement≥0.3m3/min	Exhaust Pressure≥0.8MPa Displacement≥0.3m3/min

1. IGBT high-frequency inverter technology, small volume, lightweight, high-frequency arc citation, easy arc, and high load continuous rate.
2. Use cheap compressed air to do cutting gas sources, which is more economical and efficient than flame-cutting machines.
3. With 2 steps/4 step switching functions, reduce the degree of manual fatigue.
4. Cut current (digital display) continuously adjustable, accurate, and intuitive, intelligent control of the fan, energy saving and power saving, reducing the fans' failure rate.
5. The configuration mechanism is used with a torch cutting and CNC system.
6. Suitable for long-term, heavy-load use.

We are committed to providing customers with reasonably priced， high-quality equipment.
Camco adheres to the following service concepts; customer-first and integrity-based, world-class brands, systematization, and standardization of customer service to provide competitive overall service solutions with pre-sales, sales, and after-sales services.
We are devoted and committed to providing durable products and quality service to win the lasting trust and support of our customers.

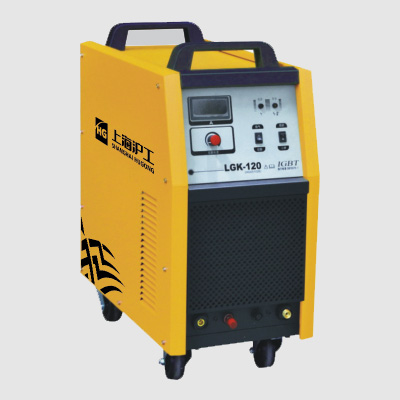

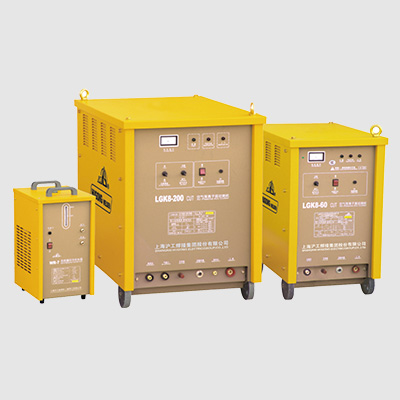

Model	LGK8-60	LGK8-100	LGK8-120	LGK8-160	LGK8-200
Input Voltage(V)	380	380	380	380	380
Rated Input Capacity(kVA)	15.8	26.4	37.5	50.6	62.5
Output No-load Voltage(V)	280	300/240	300/260	320/277	330/280
Rated Output Current（A）	60	100/70	120/80	155/100	195/120
Switching Current Consistency60%(A)	60	100/70	100%(120/80)	100%(160/100)	100%(200/120)
Maximum Cutting Thickness (mm) Carded Steel, Non-ferrous Steel	22	32	42	55	65
Iron	16	22	30	45	55
Yellow Copper, Purple Copper	12	16	20	25	32
Weight（kg）	106	134	200	235	246
Standard Packing Size LxWxH (mm)	745x480x810	745x480x810	910x610x895	910x610x895	910x610x895
Applicable Cutting Materials	Carbon steel, stainless steel, alloy steel, copper, aluminum, titanium, nickel, etc.
Carbon Steel, Stainless Steel Cutting Thickness（mm）	22	32	42	55	65
Aluminum And Alloy Cutting Thickness（mm）	16	22	30	45	55
Copper And Alloy Cutting Thickness（mm）	12	16	20	25	32
Required Inlet Gas Pressure（MPa）	0.45	0.45	0.55	0.55	0.55
Gas Consumption（L/min）	≥160	≥170	≥180	≥190	≥200
Recommended Air Compressor Specifications	Exhaust Pressure≥0.8MPa	Displacement≥0.2m3/min	Exhaust Pressure≥0.8MPa,Displacement≥0.3m3/min

1. Using two-stage tube rectification technology.
2. Suitable for cutting almost all metal sheets such as carbon steel, stainless steel, aluminum, copper, titanium, nickel, composite metal, cast iron, etc.
3. Reliable and rapid arc ignition, fast cutting speed, and small workpiece deformation.
4. Compressed air is used as the cutting gas source, which does not pollute the environment and is economical and practical. Compared with flame cutting, taking cutting a 12mm thick carbon steel plate as an example, the cutting speed is four times that of flame cutting.
5. Rapid cutting of 1-12mm thin plates of automotive titanium and building metal plates.
6. LGK8-120 and above are equipped with WR-7 cooling water tank as standard.

We are committed to providing customers with reasonably priced， high-quality equipment.
Camco adheres to the following service concepts; customer-first and integrity-based, world-class brands, systematization, and standardization of customer service to provide competitive overall service solutions with pre-sales, sales, and after-sales services.
We are devoted and committed to providing durable products and quality service to win the lasting trust and support of our customers.

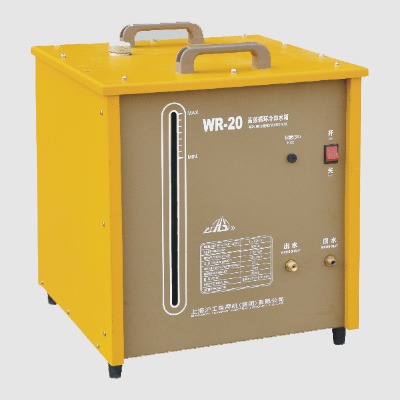

Model	WR-7	WR-20
Input Voltage(V)	220	220
Rated Input Capacity(kVA	2	2
Flow(L/min)	10	10
Cooling Water Volume(L)	7	20
Maximum Head(m)	14	16
Machine Net Weight/gross Weight(kg)	18	28
Carton Packing Size(mm)	415x310x630	550x520x610

Cutting or welding with a high current will easily cause the temperature of the cutting torch (or welding torch) to rise. On the one hand, it will affect the user's operation.
The circulation booster pump and high diversion radiator make the cutting torch (or welding torch) get more effective circulating cooling and heat dissipation, which can effectively reduce the cutting torch (or welding torch) temperature and reduce the loss of consumable parts;
WR-20 circulating water cooling box is more powerful than the WR-7 circulating water cooling box and has a better heat dissipation effect. It is recommended to use it for high current or long-term continuous cutting or welding.

We are committed to providing customers with reasonably priced， high-quality equipment.
Camco adheres to the following service concepts; customer-first and integrity-based, world-class brands, systematization, and standardization of customer service to provide competitive overall service solutions with pre-sales, sales, and after-sales services.
We are devoted and committed to providing durable products and quality service to win the lasting trust and support of our customers.
