Portable welding generator genwelder for sale

Name: Portable welding generator genwelder for sale
Brand: CAMCO MALL
Price: 99999 USD
Availability: InStock

0.0 (0)

0 Sold

$99,999.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description
About Camco
Purchase Notes

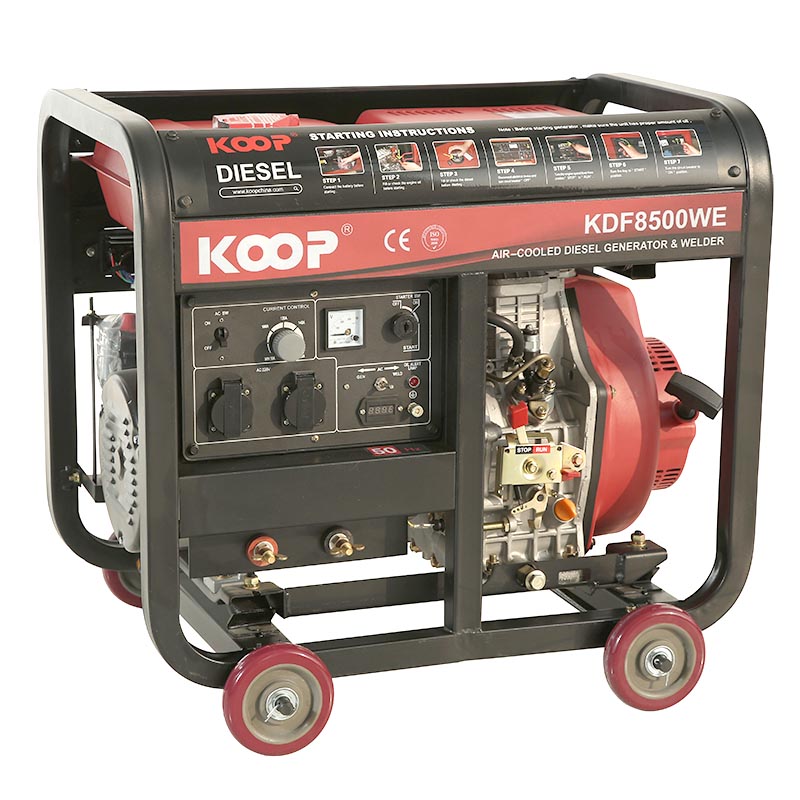

The portable welding generator series is a dual-use unit featuring welding and power generation.
This generator set is developed upon the latest technology built upon a 10-year history of manufacturing welders/generators.
The power supply for welding is self-driven. It can be used in a host of applications- railroading, highway construction, port operations, oil fields, chemical plants, building construction, agriculture, and many more. Self-excitation and constant voltage enhance the generator's performance.

Model	KDF6700WE	KDF8500WE
Rated Frequency [Hz]	50
Rated Voltage [v]	230
Rated Output Power [Kva]	2.0
Welding Voltage Without Load	50~65
Rated Current	160	200
Work Voltage	25~30
Current Regulation Range	50~180	70~220
Welding Load Continuous Ration	60%
Phase Number	Single Phase
Excitation Transistorized	Self-excitation, brush
Power Factor Cos Φ	1
Insulation Grade	F
Fuel Tank Capacity [L]	12.5
Frame Type	25 * 25mm Squre tube frame 25 * 25mm	35 * 35mm Squre tube frame 35 * 35mm
Engine Model	KD186FAE	KD192FE

Starting System	Electric start
Engine Type	1-Cylinder ,4-Stroke, Air-cooled,Vertical
Broke * Stroke [mm]	86 * 72	92*75
Displacement [L]	0.418	0.499
Compression Ratio	19.5
Rated Rotation Speed [rpm]	3000
Rated Power [Kw]	5.8	7.6
Power-take-off	Crankshaft
Lube [L]	1.65
Fuel Type	0#(summer), -10#(winter) Diesel oil diesel: 0#(summer), -10#(winter)
Lube	SAE10W30 ( above CD grade ) SAE10W30 (above CD grade)
Low Oil Pressure Alarm System	With
Overall Dimension [mm] ( LWH)	750515630	750515640
Net Weight [kg]	116	150

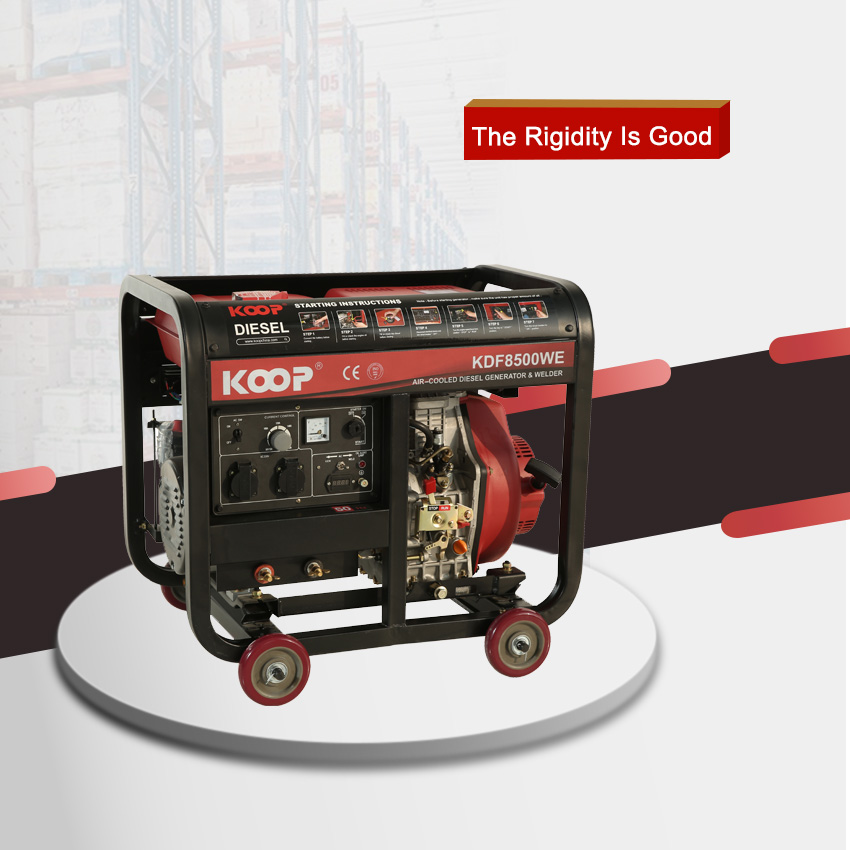

The rigidity is good, it is not easy to produce deflection and deformation during work, and it will not lose stability, ensuring that the upper and lower electrodes will not be misaligned.
The action of pressurizing and depressurizing is flexible, rapid, and without impact, and the electrode pressure followability is good, especially for the projection welding machine, the electrode pressure followability is required to be higher.
Various electrode pressure curves suitable for welding process requirements can be provided (for example constant pressure, step pressure and saddle pressure, etc.).
The electrode pressure should be stable during welding.
