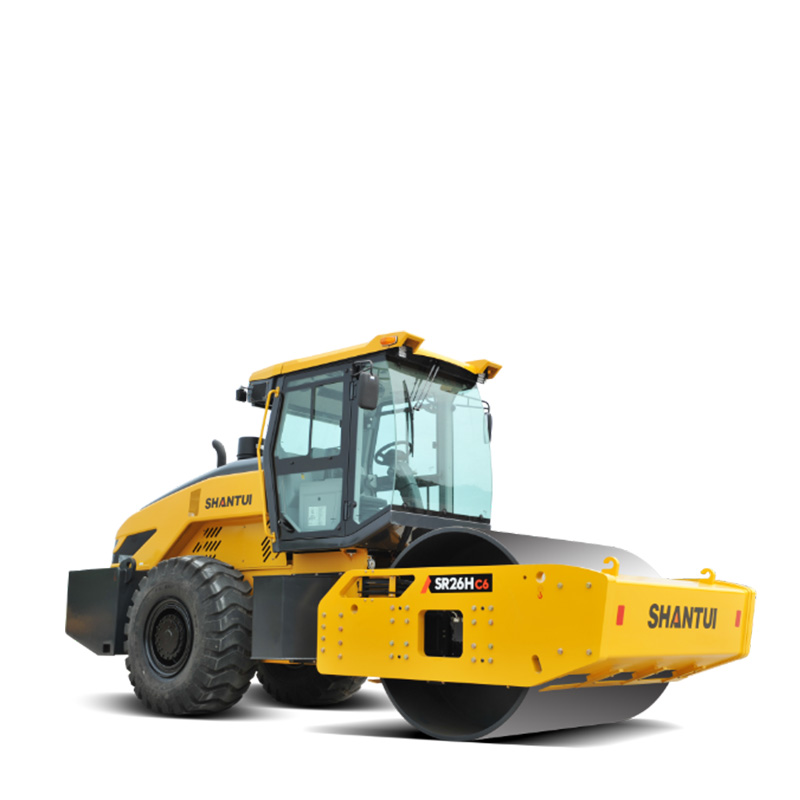

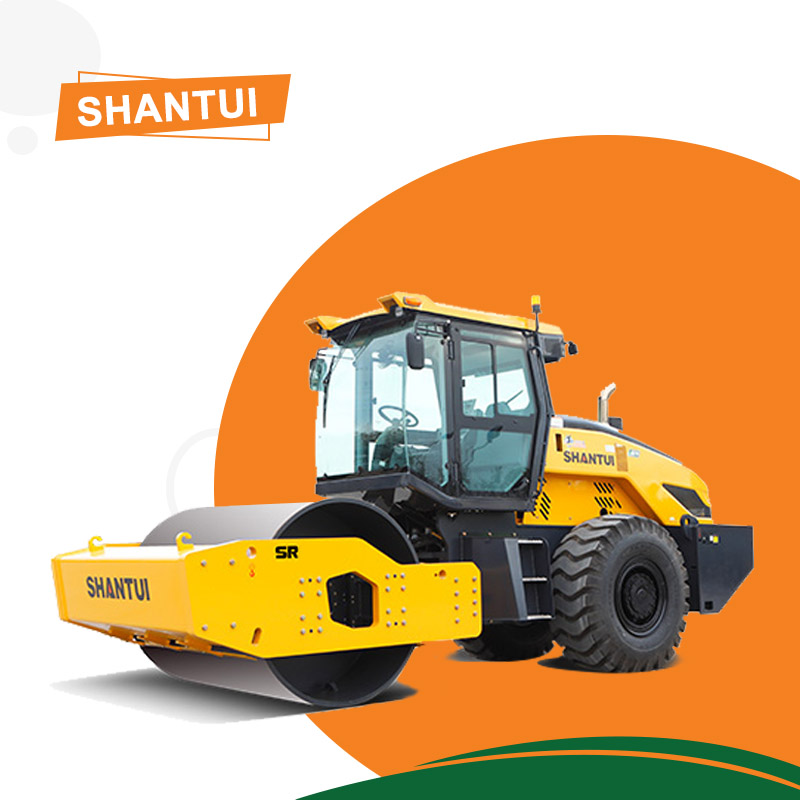

SHANTUI Road Roller

Name: SHANTUI Road Roller
Brand: CAMCO MALL
Price: 99999 USD
Availability: InStock

0.0 (0)

1 Sold

$99,999.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description
About Camco
Purchase Notes

The new generation of fully hydraulic single-drive single-drum vibratory roller newly developed by Shantui is more efficient in work, more economical in use, more comfortable in experience, more convenient in maintenance, smarter in operation, and more atmospheric in appearance. It is suitable for various non-cohesive soils, such as gravel, crushed stone, sand and gravel mixture and various concrete, etc., are ideal equipment for foundation engineering.

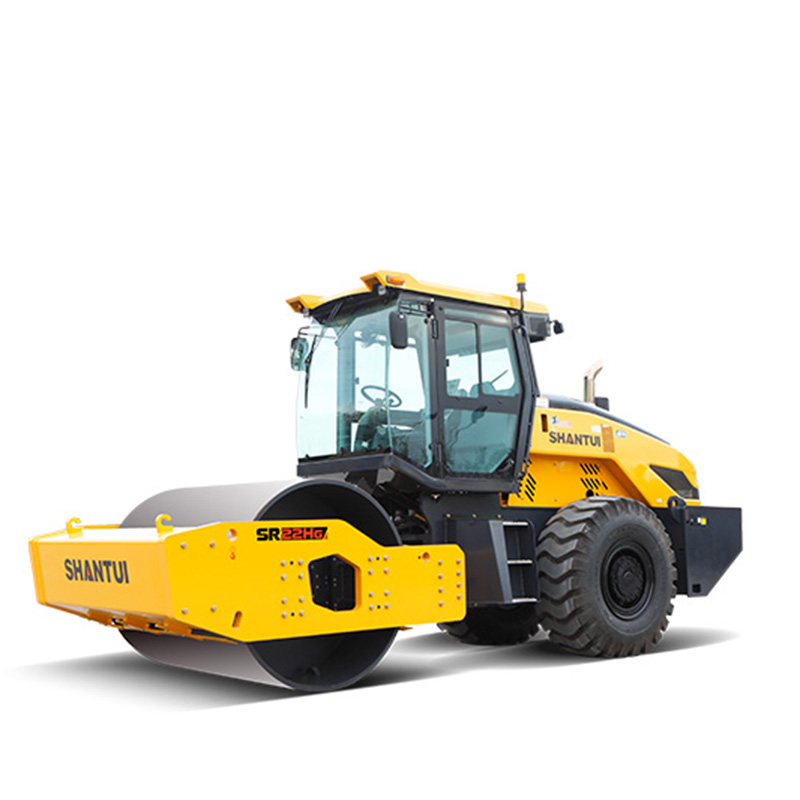

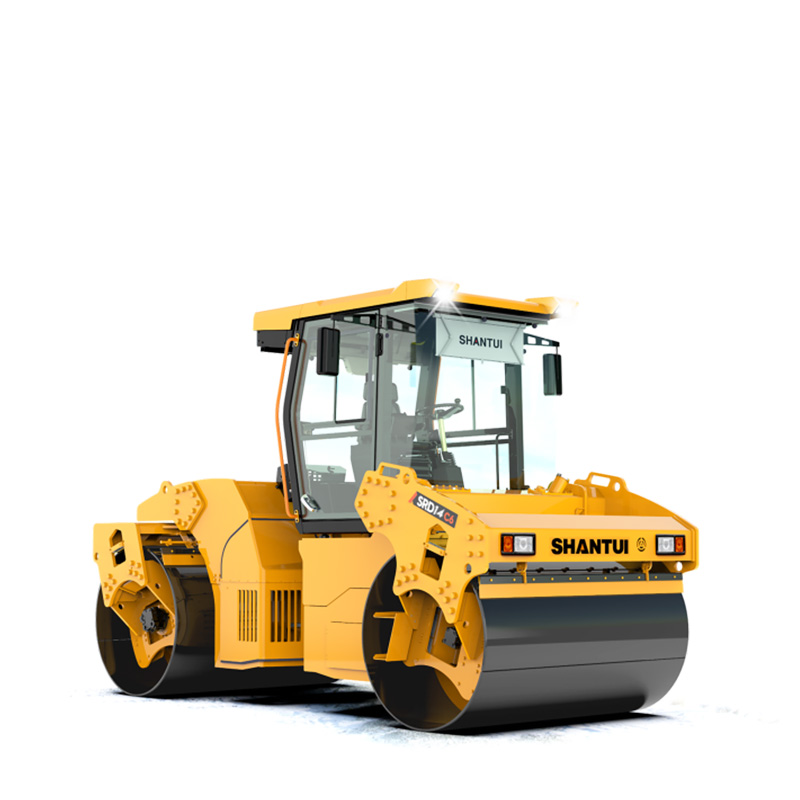

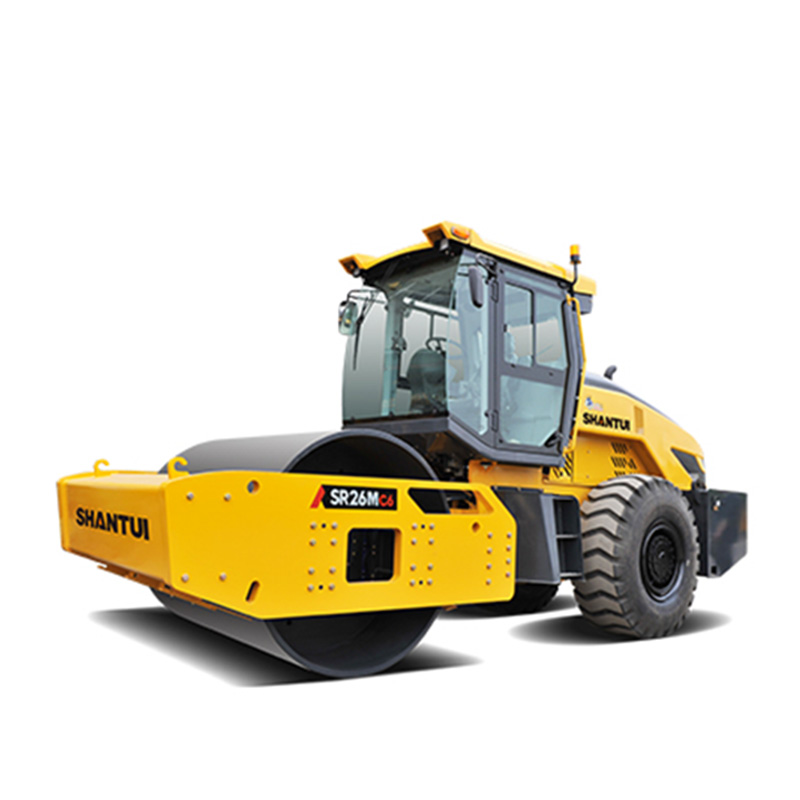

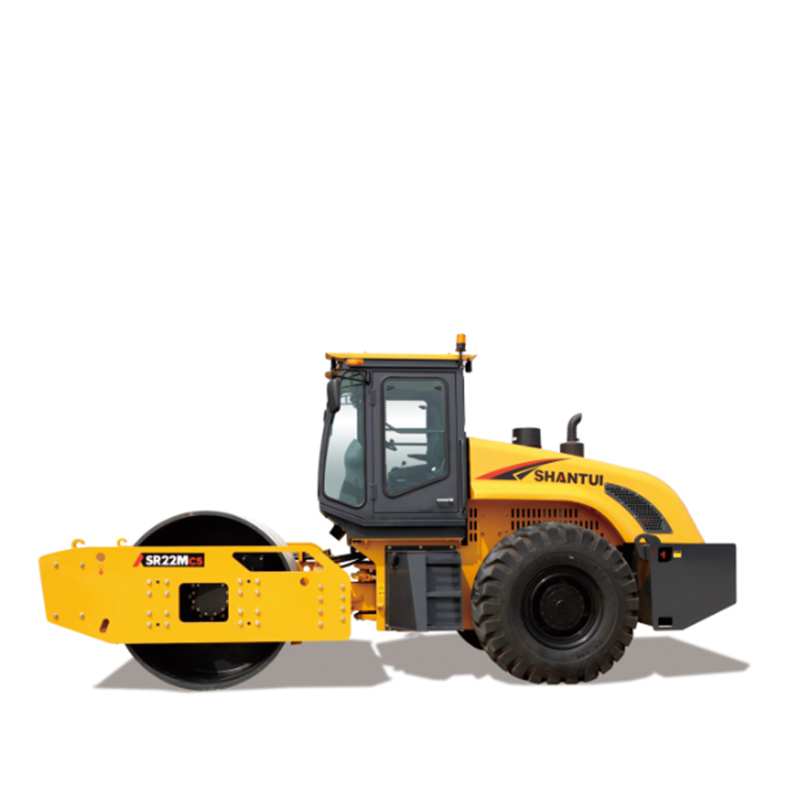

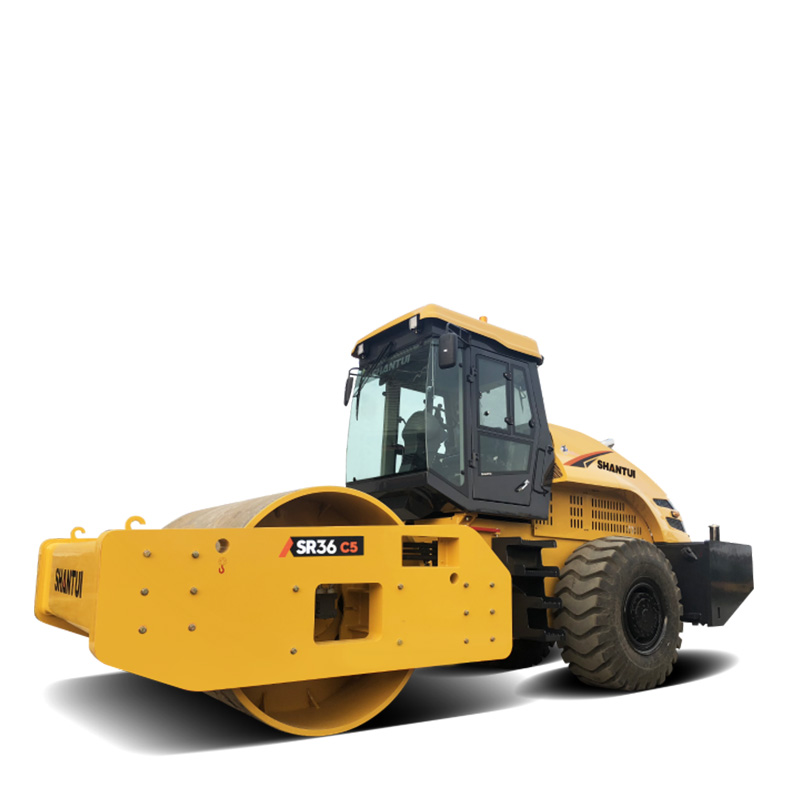

Parameter Ｎame	SR26H-C6	SR26H-C5	SR26M-C6	SR22M-C6	SR22H-C5	SR36-C5	SRD14-C6
Operating Ｗeight (Kg)	26000	26000	26000	22000	22000	36000	14000
Exciting Ｆorce (KN)	435/315	435/315	453/315	410/300	410/300	760/550	-
Vibration　Ｆrequency (Hz)	28/32	35/29	29/35	29/35	35/29	31/26	-
Nominal Ａmplitude (mm)	2.0/1.0	2.0/1.0	2.0/1.0	2.0/1.0	2.0/1.0	2.3/1.2	-
Gradeability (%)	30	30	30	30	30	30	35
Engine Ｍodel	WP6	WP6	WP6	WP6	WP6	Weichai WP12	Cummins QSB4.5
Rated Ｐower/rated Ｓpeed (kW/rpm)	147/2000	147/2000	140/1800	140/1800	140/2000	276/2200	119/2200
Overall Ｄimensions Ｏf Ｍachine (mm)	6848×2472×3370	649524323314	684824723370	679923623325	638823623180	713026402430	510022803260
Forward Ｓpeed (km/h)	0-5,0-9.5	0-4.8/0-9.5	2.8/5.5/9	2.8/5.5/9	0-5.6/0-8.8	3.9/5.2/5.6/9.0	-
Reversing Ｓpeed (km/h)	0-5,0-9.5	0-4.8/0-9.5	2.8/5.5/9	2.8/5.5/9	0-5.6/0-8.9	3.9/5.2/5.6/9.0	-
Wheelbase (mm)	3470	3270	3470	3445	3200	3510	-
Fuel Ｔank (L)	330	300	3470	330	300	390	-
Compacting Ｗidth（mm）	2170	2170	2170	2140	2140	2170	-

1. High safety and comfort
● The whole machine adopts three-level shock absorption, special sealing, low vibration, and low noise;
● The cab dashboard, seat, and control box are arranged in combination with ergonomics for comfortable operation;
● Real-time speed display to meet the speed regulation under different working conditions
2. High flexibility and usability
● The maintenance filter elements are arranged in a centralized way, and the filter elements can be replaced by opening the hood;
● The engine and gearbox are inverted for easy maintenance;
● The front end of the water tank is equipped with a dust-proof protective screen, which is more convenient for cleaning;
● Drain oil from the engine and drain water from the water tank, which takes less time for maintenance.
3. Working performance
● Weichai engine has good fuel economy, strong parts versatility, and low maintenance cost;
● Suction-type large-area radiator, effectively extending the service life of the engine and hydraulic components;
● Shantui's proprietary technology steel wheels, bearing independent lubrication, long life.
4. Operating cost
● Exclusive matching technology can achieve high work efficiency and reasonable fuel economy, and comprehensive fuel consumption can be reduced by 8%~10%;
● Imported core electric hydraulic components, high quality, and reliability, reducing downtime.
