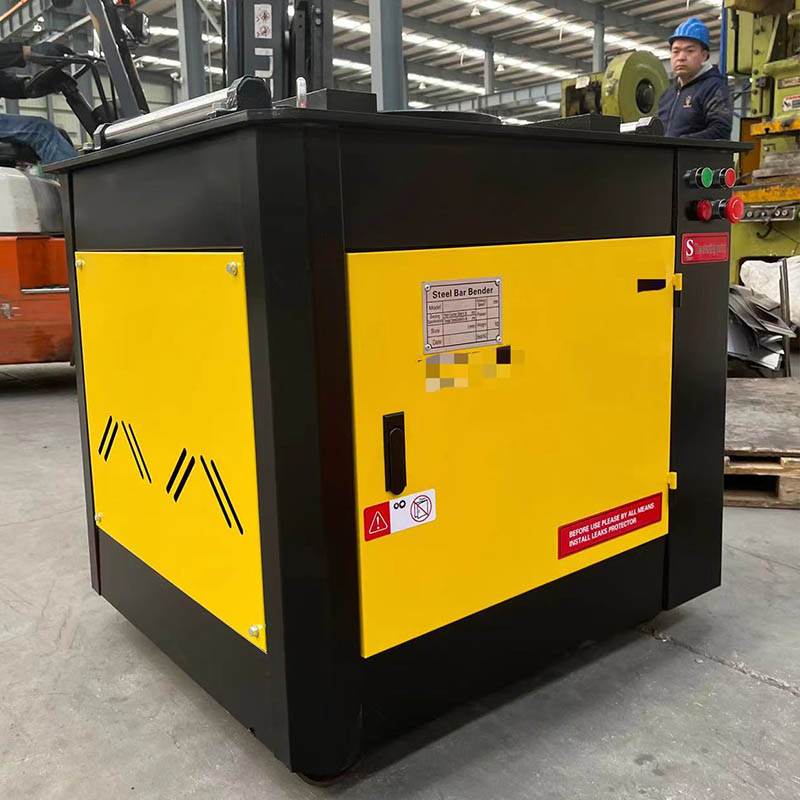

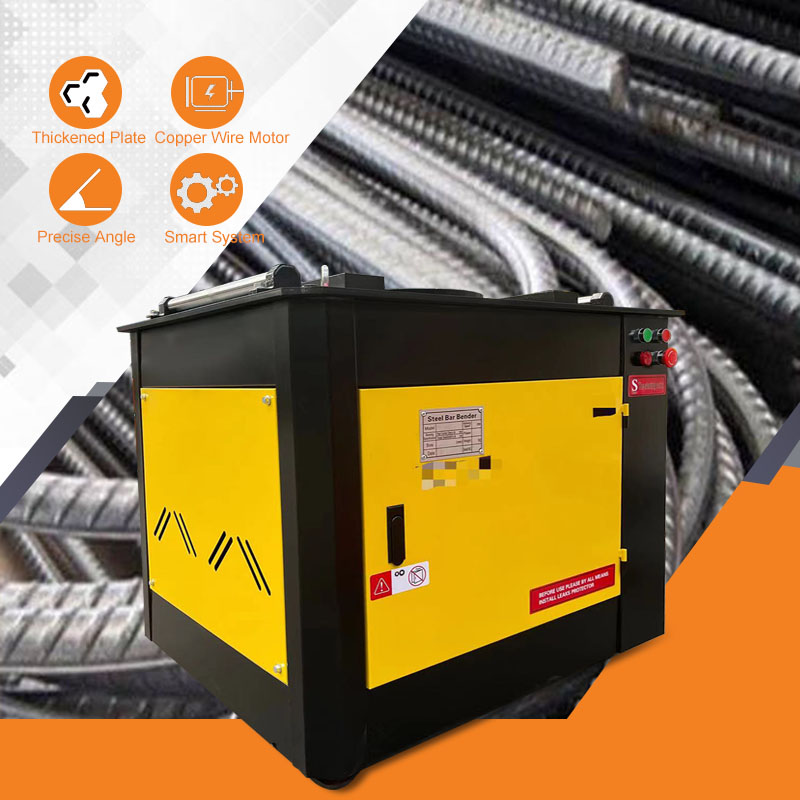

Steel Bending Machine

SKU:
0.0 (0)
0 Sold
$992.00 $0.00
Contact us if the chosen model price shows 99999USD
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • CNGW-series:
    CNGW40-1
    CNGW50-1
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • Steel Bending Machine
  • Steel Bending Machine
  • Description
  • About Camco
  • Purchase Notes
    The steel bar bending machine belongs to an improvement on the structure of the steel bar bending machine. The utility model includes a speed reducer, a large gear, a pinion, and a curved disc surface, and is characterized in that in the structure: the double-stage braking motor is directly connected with the speed reducer for a first-stage deceleration; The curved disk surface is always driven to rotate; the curved disk surface is provided with a central shaft hole and several curved shaft holes; the positioning square bars of the working table are respectively provided with several positioning shaft holes. Because the two-stage brake motor is directly connected with the reducer for one-stage deceleration, the ratio of input and output revolutions is accurate, the bending speed is stable and accurate, and the speed can be automatically controlled by electricity, and the brake can ensure the bending angle.
Parameter CNGW40-1 CNGW50-1
－ Manual Square Bar Disc Hollow Manual Square Bar Disc Hollow
Round Steel ≤40mm ≤45mm
Rebar ≤28mm ≤32mm
Motor Power 3kw Non-standard Copper Wire  4kw
Dimension 850*740*830mm 1000*860*980mm
Weight 280kg 390kg
1. Fully automatic steel bar hoop bending machine production equipment, with a straightening function at the same time, one machine with multiple functions.
2. Using intelligent control, it can process various sizes and specifications of square, rectangle, rhombus, polygon, special shapes, etc.
3. High production efficiency, equivalent to 20 to 30 labor.
4. The equipment is practical and only needs one person to operate, saving a lot of manpower.
5. Raw materials are saved, and there is almost no loss of steel heads during continuous forming during work.
6. It occupies a small area, saves straightening and cutting work areas, and can work in narrow areas.
7. Equipment maintenance costs and energy consumption costs are very low.
