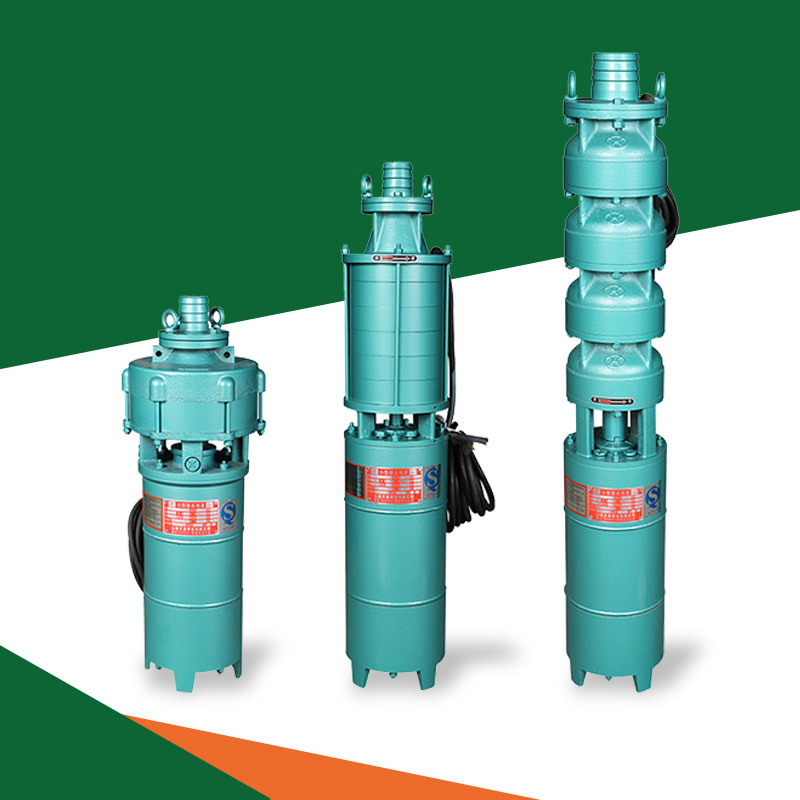

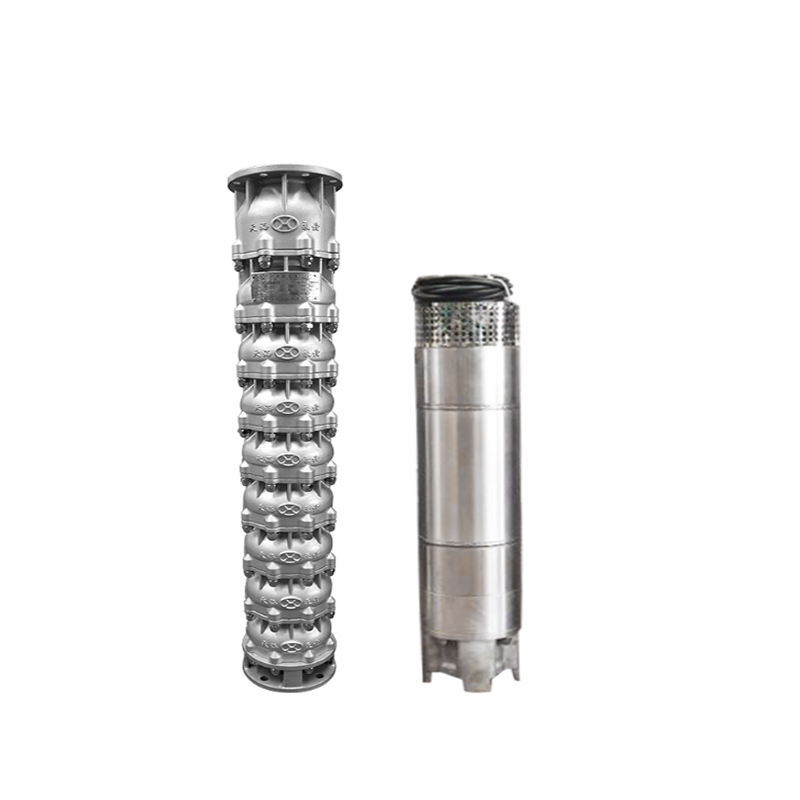

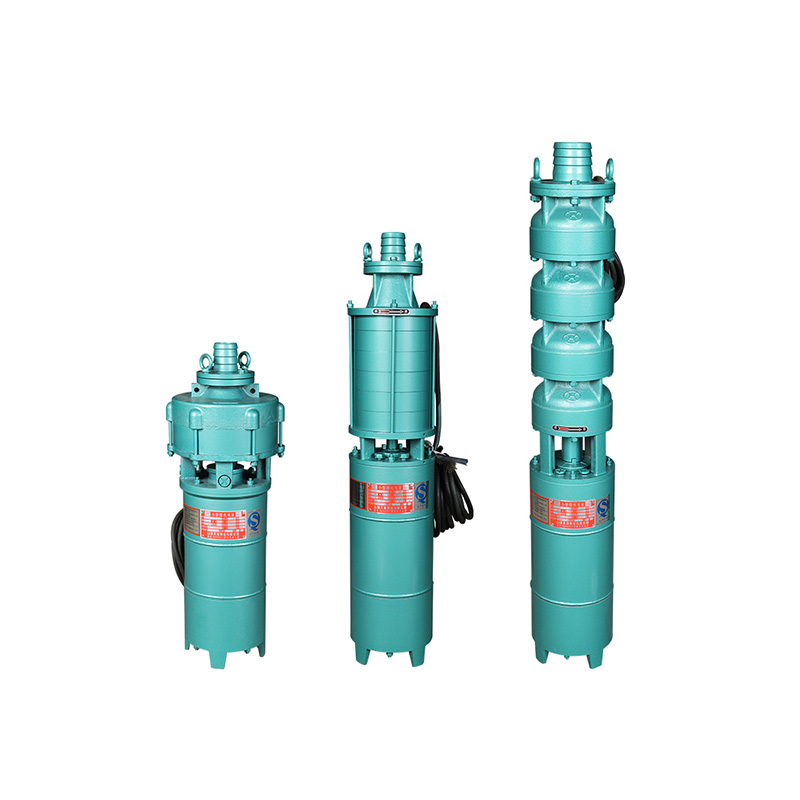

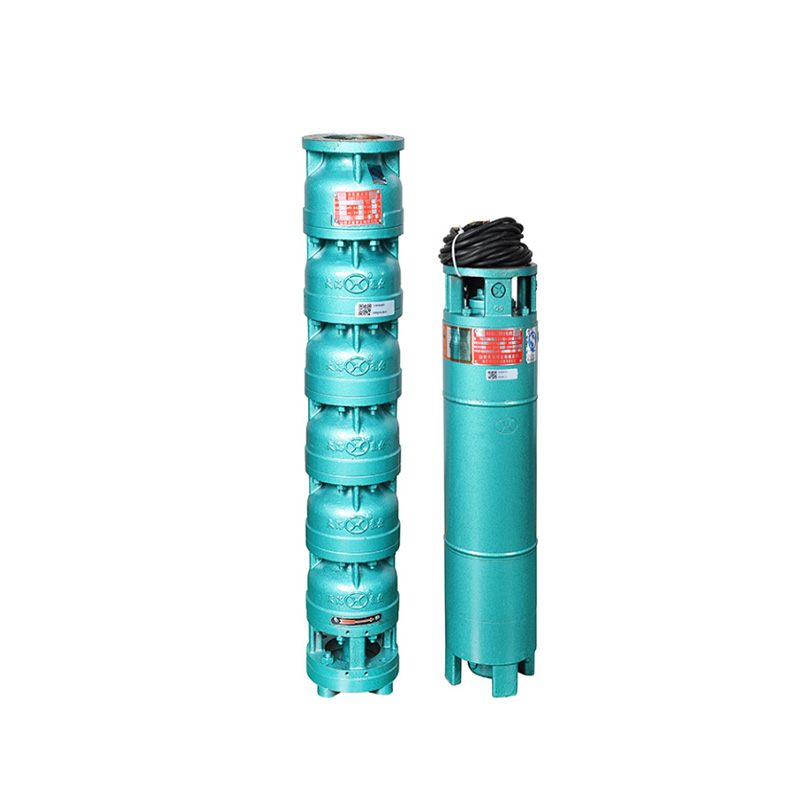

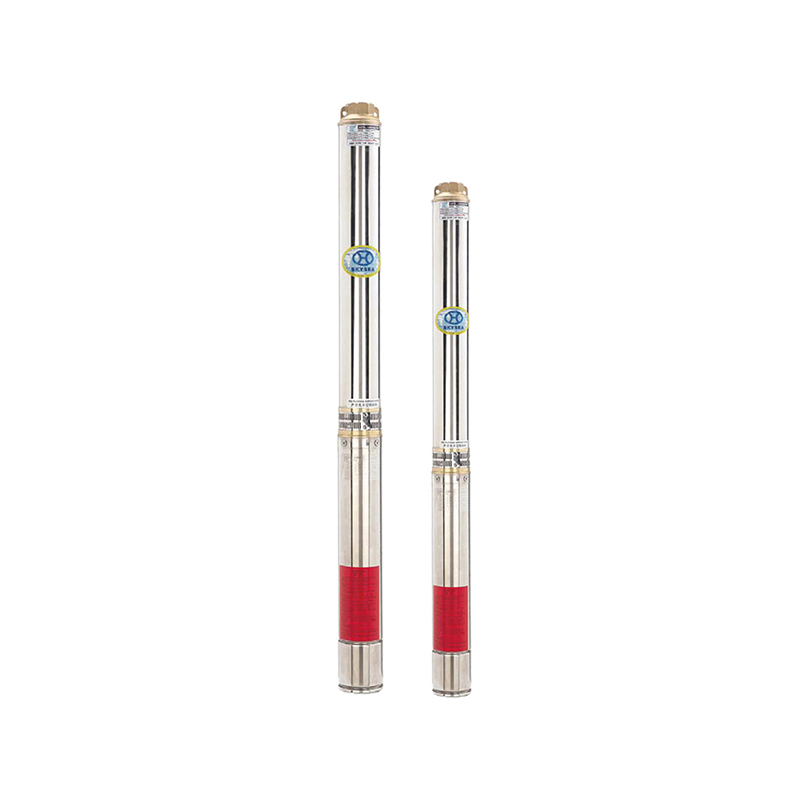

TH Series Submersible Pump

Name: TH Series Submersible Pump
Brand: CAMCO MALL
Price: 99999 USD
Availability: InStock

0.0 (0)

0 Sold

$99,999.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Submersible Pump:

150QJ10-78/11-4KW 10m³/h

150QJ10-100/14-5.5KW 10m³/h

150QJ20-59/9-5.5KW 20m³/h

150QJ10-150/21-7.5KW 10m³/h

150QJ25-64/8-7.5KW 25m³/h

150QJ20-65/10-7.5KW 20m³/h

150QJ20-78/12-7.5KW 20m³/h

150QJ32-54/9-9.2KW 32m³/h

150QJ40-56/7-11KW 40m³/H

150QJ40-64/8-13KW 40m³/h

150QJ32-108/18-18.5KW 32m³/h

150QJ50-60/10-18.5KW 50m³/h

150QJ50-66/11-18.5KW 50m³/h

150QJ50-72/12-18.5KW 50m³/h

175QJ40-72/6-13KW 40m³/h

175QJ50-84/7-18.5KW 50m³/h

200QJ63-36/3-11KW 63m³/h

200QJ63-96/8-30KW 63m³/h

200QJ80-99/9-37KW 80m³/h

250QJ100-108/6-45KW 100m³/h

QS65-30/2-9.2kw 65m³/h

100QJC10-3.8X16 10m³/h

Quantity:

Add to Favorites (0)

Description
About Camco
Purchase Notes

Main Technical Paraments

Product Name	Model	Technical Parameters
		Flow	Head	Power	Speed	Outlet	PH/V/HZ
		(m3/h)	(m)	(kw)	(rpm)	(inch)	PH/V/HZ
Submersible Pump	150QJ10-78/11-4KW	10	78	4	2850	2	3/380/50
Submersible Pump	150QJ10-100/14-5.5KW	10	100	5.5	2850	2	3/380/50
Submersible Pump	150QJ20-59/9-5.5KW	20	59	5.5	2850	2	3/380/50
Submersible Pump	150QJ10-150/21-7.5KW	10	150	7.5	2850	2	3/380/50
Submersible Pump	150QJ25-64/8-7.5KW	25	64	7.5	2850	2	3/380/50
Submersible Pump	150QJ20-65/10-7.5KW	20	65	7.5	2850	2	3/380/50
Submersible Pump	150QJ20-78/12-7.5KW	20	78	7.5	2850	2	3/380/50
Submersible Pump	150QJ32-54/9-9.2KW	32	54	9.2	2850	2.5	3/380/50
Submersible Pump	150QJ40-56/7-11KW	40	56	11	2850	2.5	3/380/50
Submersible Pump	150QJ40-64/8-13KW	40	64	13	2850	2.5	3/380/50
Submersible Pump	150QJ32-108/18-18.5KW	32	108	18.5	2850	2.5	3/380/50
Submersible Pump	150QJ50-60/10-18.5KW	50	60	18.5	2850	3	3/380/50
Submersible Pump	150QJ50-66/11-18.5KW	50	66	18.5	2850	3	3/380/50
Submersible Pump	150QJ50-72/12-18.5KW	50	72	18.5	2850	3	3/380/50
Submersible Pump	175QJ40-72/6-13KW	40	72	13	2850	2.5	3/380/50
Submersible Pump	175QJ50-84/7-18.5KW	50	84	18.5	2850	3	3/380/50
Submersible Pump	200QJ63-36/3-11KW	63	36	11	2850	3	3/380/50
Submersible Pump	200QJ63-96/8-30KW	63	96	30	2850	3	3/380/50
Submersible Pump	200QJ80-99/9-37KW	80	99	37	2850	4	3/380/50
Submersible Pump	250QJ100-108/6-45KW	100	108	45	2875	4	3/380/50
Submersible Pump	QS65-30/2-9.2kw	65	30	9.2	－	4	3/380/50
Submersible Pump	100QJC10-3.8X16	10	60	3	－	2	3/380/50

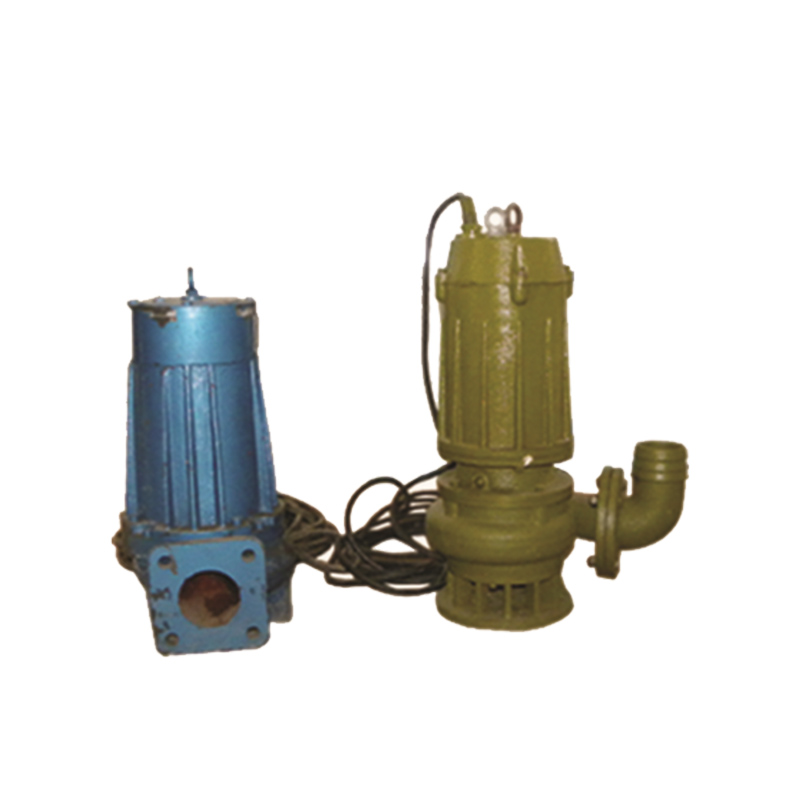

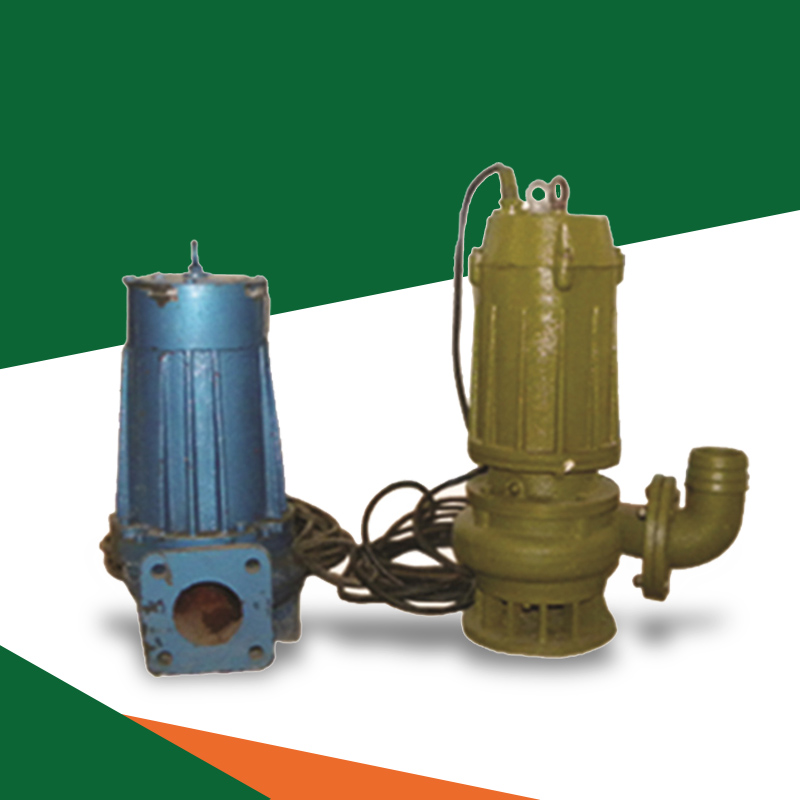

Sewage Pump	WQ15-60-5.5kw	15	60	5.5	2860	2	3/380/50
Sewage Pump	WQ40-15-3kw	40	15	3	2860	3	3/380/50
Sewage Pump	WQ40-15-4KW	40	15	4	2860	3	3/380/50
Sewage Pump	WQD5-5-0.37	5	5	0.37	－	1.5	1/220/50
Sewage Pump	WQD6.8-10-0.75	6.8	10	0.75	－	2	1/220/50
Sewage Pump	WQD8-12-1.1	8	12	1.1	－	2	1/220/50
Sewage Pump	WQD15-15-1.5	15	15	1.5	－	2	1/220/50
Sewage Pump	WQD30-12-1.8	30	12	1.8	－	2	1/220/50

Detailed description
1. Submersible electric pump is composed of five parts: a water pump, motor, water line, waterproof cable, and control switch. Water
pump belongs to a single-suction multistage centrifugal pump.
2. Submersible motor adopts YQS type waterfilled wet structure, the
chamber full of clear water, mainly for cooling the motor and the bearing lubrication. During operation, as the temperature change may
cause the water filling volume to vary, a pressure regulator is equipped
in the motor to allow the calibration.
3. To prevent the sand from getting into the motor, a sand-preventing sealing mechanism consisting of a sand thrower and a
mechanical seal is mounted on the upside motor, composing a sand-preventing structure, the whole motor is well sealed by its sealing
structure.
4. There are water injection holes and exhaust holes in the upper part of
the motor and discharge hole in the lower part.
5. Thrust bearing and thrust collar are installed at the lower part of
motor, mainly subjected to the axial force of the electric pump.

6. The winding of the motor stator adopts water-proof electromagnetic wire with good insulating and water-proof functions and the rotor adopts a squirrel-cage structure.
Working principle
After the pump is turned on, the impeller rotates at high speed, and the liquid in it rotates along with the blades. Under the action of centrifugal force, it flies away from the impeller and shoots out. The speed of the ejected liquid in the diffusion chamber of the pump casing gradually slows down, and the pressure gradually increases. Outlet, discharge pipe outflow.
At this time, because the liquid at the center of the blade is thrown to the surroundings, a vacuum low-pressure area is formed that is neither air nor liquid. The liquid in the liquid pool flows into the pump through the suction pipe under the action of the atmospheric pressure of the pool surface. It is continuously sucked up from the liquid pool and continuously flows out from the discharge pipe.

Advantages

Product features and advantages

1. The submersible electric pump works directly into the water. The installation is simple, without the need to build a pump house, and the civil construction area is small.
2. The submersible electric pump is directly connected to the water pump and the motor and has a compact structure.
3. The submersible motor operates under low noise.
4. The pump runs underwater and is not affected by the climate and surrounding environment.
5. The product has stable performance and mature technology. It has been in mass production for more than 40 years, has more than 60 patents and honor certificates, and has obtained ISO9001, CCC, and SGS certifications.
