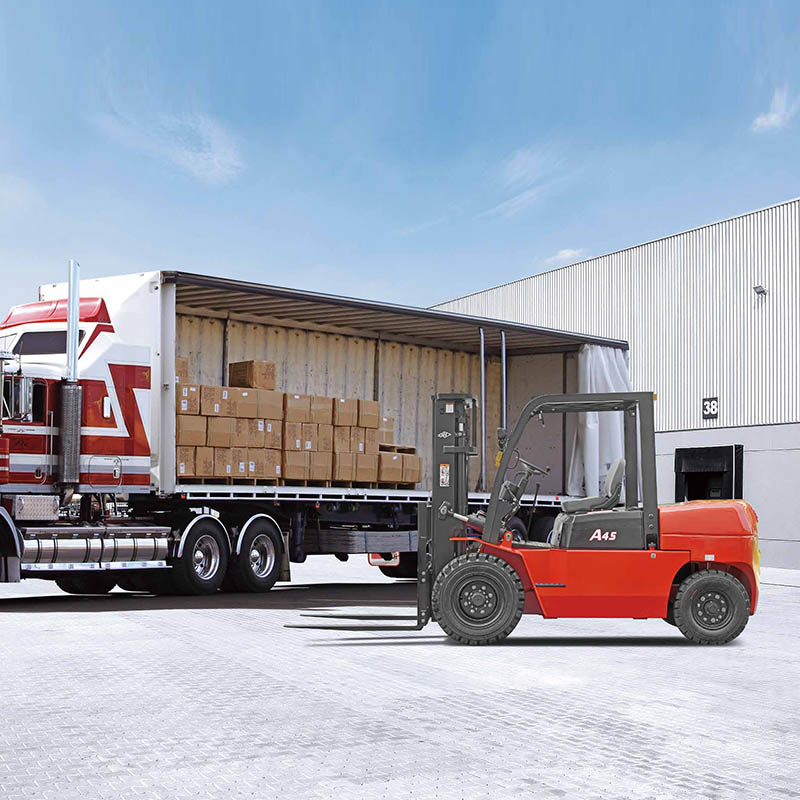

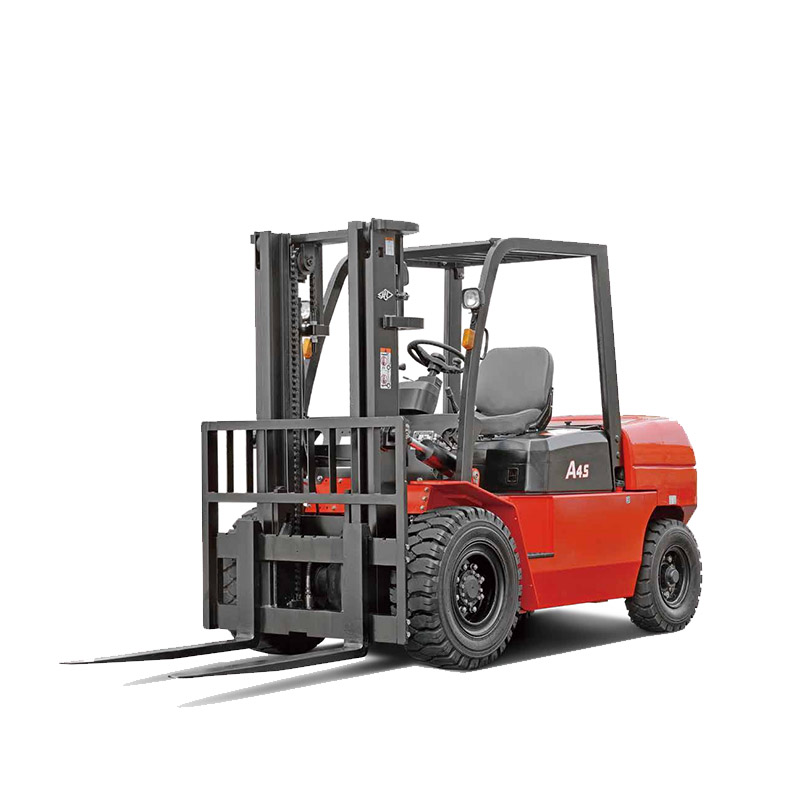

Hangcha A Series 4-5t Forklift

Name: Hangcha A Series 4-5t Forklift
Brand: CAMCO MALL
Price: 17053 USD
Availability: InStock

0.0 (0)

0 Sold

$17,053.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description
About Camco
Purchase Notes

A series 4.0-5.0t forklift speciﬁcation

Manufacturer	－	HANGCHA GROUP CO., LTD.
Manufacturer's Type Designation	－	CPCD40-AG53	CPCD45-AG53	CPCD50-AXG53
Manufacturer's Type Designation	－	CPCD40-AG53	CPCD45-AG53	CPCD50-AXG53
Drive: Electric (Battery Or Mains), Diesel, Petrol, Fuel Gas	－	Diesel	Diesel	Diesel
Operator Type: Hand, Pedestrian, Standing, Seated, Order-picker	－	Seated	Seated	Seated
	－	Seated	Seated	Seated
Rated Capacity/rated Load	Q (kg)	4000	4500	5000
Rated Capacity/rated Load	Q (kg)	4000	4500	5000
Load Centre Distance	c (mm)	500	500	500
Load Distance, Centre Of Drive Axle To Fork	x (mm)	550	550	555
Load Distance, Centre Of Drive Axle To Fork	x (mm)	550	550	555
Wheelbase	y (mm)	2100	2100	2100
Wheelbase	y (mm)	2100	2100	2100
Service Weight	kg	5970	6220	6500
Axle Loading, Laden Front/rear	kg	8675/1295	9300/1420	10350/1150
Axle Loading, Laden Front/rear	kg	8675/1295	9300/1420	10350/1150
Axle Loading, Unladen Front/rear	kg	2570/3400	2590/3630	2825/3675
Tires: Solid Rubber, Superelastic, Pneumatic, Polyurethane	－	Pneumatic	Pneumatic	Pneumatic
Tires: Solid Rubber, Superelastic, Pneumatic, Polyurethane	－	Pneumatic	Pneumatic	Pneumatic
Tyre Size, Front	－	8.25-15-14PR	300-15-18RP	300-15-18RP
Tyre Size, Front	－	8.25-15-14PR	300-15-18RP	300-15-18RP
Tyre Size, Rear	－	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR
Wheels, Number Front / Rear (x = Driven Wheels)	－	2×/2	2×/2	2×/2
Wheels, Number Front / Rear (x = Driven Wheels)	－	2×/2	2×/2	2×/2
Tread, Front	b10 (mm)	1160	1190	1190
Tread, Front	b10 (mm)	1160	1190	1190
Tread, Rear	b11 (mm)	1130	1130	1130
Tilt Of Mast/Fork Carriage Forward/Backward	α/β(°)	6/12	6/12	6/12
Tilt Of Mast/Fork Carriage Forward/Backward	α/β(°)	6/12	6/12	6/12
Height, Mast Lowered	h1 (mm)	2245	2245	2245
Free Lift	h2 (mm)	160	160	160
Free Lift	h2 (mm)	160	160	160
Lift	h3 (mm)	3000	3000	3000
Lift	h3 (mm)	3000	3000	3000
Height, Mast Extended	h4 (mm)	4170	4170	4365
Height, Mast Extended	h4 (mm)	4170	4170	4365
Height Of Overhead Guard (Cabin)	h6 (mm)	2250	2250	2250
Seat Height Relating To SIP	h7 (mm)	1302	1302	1302
Coupling Height	h10 (mm)	520	520	520
Overall Length	l1 (mm)	4260	4280	4285
Length To Face Of Gorks	l2 (mm)	3190	3210	3215
Overall Width	b1(mm)	1395	1490	1490
Fork Dimensions	s/e/l (mm)	50×122×1070	50×150×1070	50×150×1070
Fork Carriage DIN 15 173 --- ISO 2328, Class/Type A,B	－	3/A	3/A	4/A
Fork-carriage Width	b3 (mm)	1350	1350	1350
Distance Between Fork-Arms	b5 (mm)	310-1200	310-1200	310-1200
Ground Clearance, Laden, Below Mast	m1 (mm)	170	170	170
Ground Clearance, Centre Of Wheelbase	m2 (mm)	230	230	230
Aisle Width For Pallets 1000 x 1200 Crossways	Ast (mm)	4530	4570	4575
Aisle Width For Pallets 800 x 1200 Lengthways	Ast (mm)	4730	4770	4775
Turning Radius	Wa (mm)	2780	2820	2820
Minimum Pivoting Point Distance	b13 (mm)	863	863	863
Travel Speed, Laden/Unladen	km/h	24/25	24/25	24/25
Lift Speed, Laden/Unladen	m/s	0.43/0.50	0.43/0.50	0.38/0.44
Lowering Speed, Laden/Unladen	m/s	0.46/0.50	0.46/0.50	0.46/0.50
Drawbar Pull, Laden/Unladen	N	39100/20000	39100/20000	39100/20000
Gradeability, Laden/Unladen	%	25/25	23/24	20/23
Service Brake	－	Hydraulic	Hydraulic	Hydraulic
Parking Brake	－	Mechanical	Mechanical	Mechanical
Engine Manufacturer/Type	－	Xinchai4D35ZG31-003	Xinchai4D35ZG31-003	Xinchai4D35ZG31-003
Engine Power	kW	60	60	60
Rated Speed	r/min	2200	2200	2200
Number Of Cylinders/Displacement	(-)/(cm3)	4/3470	4/3470	4/3470
Vehicle Electrical System Voltage	V	24	24	24
Battery Voltage/Nominal Capacity	V/Ah	2-12/60	2-12/60	2-12/60
Rated Torque	N·m/r/min	300/1600 ~ 1800	300/1600 ~ 1800	300/1600 ~ 1800
Transmissions Manufacturer	－	China	China	China
Transmissions Type	－	Powershift	Powershift	Powershift
Stage FWD/RVS	－	2/1	2/1	2/1
Operating pressure for attachments	Mpa	18	18	18
Hydraulic Tank - Capacity (drain & reﬁll)	Liter	80	80	80
Fuel Tank Capacity	Liter	90	90	90

1. Appearance
/ With the newest appearance design method, the whole forklift has smooth proﬁle lines, presents a dynamic effect, and meets the newest appearance design fashion.
/ The whole forklift has a concise appearance. The exposed parts are made of metal and are solid and reliable.
2. Safety
/ With the long axle base design, the whole forklift has better longitudinal stability. At the same lifting height, compared with the original forklifts, the lifting capacity is improved by a great degree. Meanwhile, the rear axle load is reduced, and the life of the steering tires is extended.
/ The rear leg of the overhead guard is thicker, and the safety performance of the overhead guard is improved to ensure the safety of the operator.
/ The bonnet of the standard forklift is provided with the safety latch catch to guarantee the safety of the operator.
3. Comfortability
/ With the man-machine engineering technology same to that for R series, the space for legs and boarding is larger, the operating vision is extended. The operating comfortability is greatly improved, and the fatigue strength of the operator is reduced.
/ With the integrated plug structure, the front bottom plate can be opened without tools. The convenience of routine maintenance and repair is greatly improved.
/ With the integrated engine bonnet, the bonnet rigidity is strengthened, and the noise is reduced.
/ With the stepping instruments, the display is clear and accurate.
/ With the electric integration box of an entirely new design, different electric elements and fuse are integrated, and the repair convenience is greatly improved.
4. Reliability
/ The air admission tube of the engine uses the high-position and independent passage to effectively prevent dust inhalation.
/ With the thicker rear leg of the overhead guard, the engine air admission quantity is increased, and the air admission resistance is reduced. The engine can conduct more sufficient combustion, and the engine life is extended.
/ With the large-capacity aluminum tube ribbon-type radiator and the optimized heat radiation passage, the heat radiation capacity of the whole forklift is further improved to ensure the reliable operation of the engine.
