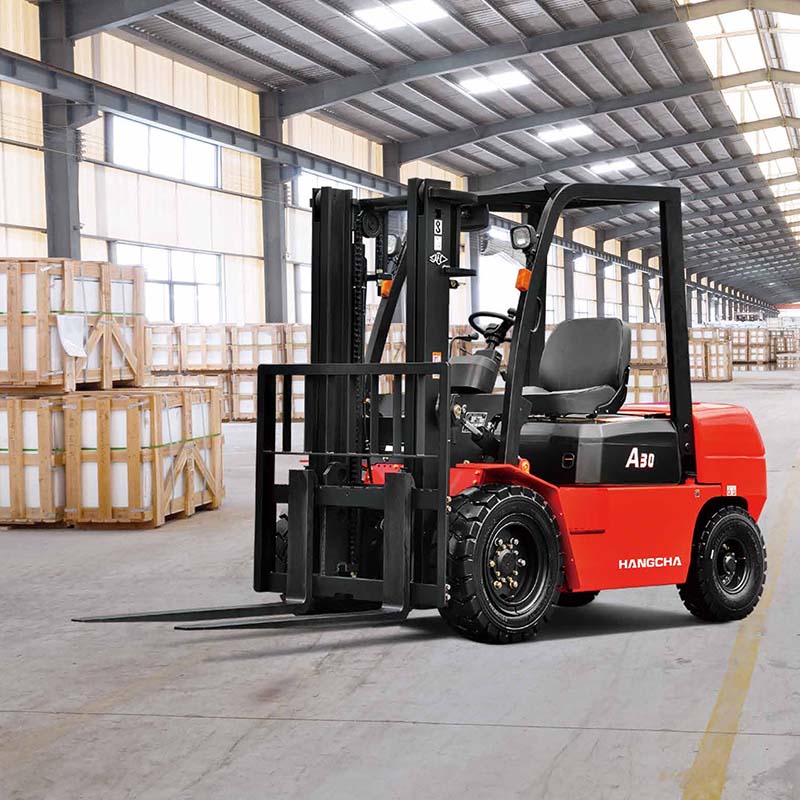

Hangcha A Series 3.5 Forklift

Name: Hangcha A Series 3.5 Forklift
Brand: CAMCO MALL
Price: 9573 USD
Availability: InStock

0.0 (0)

0 Sold

$9,573.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description
About Camco
Purchase Notes

Distinguishing	Manufacturer	－	HANGCHAGROUPCO., LTD.
	Manufacturer's Type Designation	－	CPCD35-AG2	CPCD35-AG51	CPCD35-AG65J	CPCD35-AW27
	Drive:electric(battery or mains),diesel,petrol,fuelgas	－	Diesel	Diesel	Diesel	Diesel
	Rated Capacity/rated Load	Q(kg)	3500	3500	3500	3500
	Load Centre Distance	c(mm)	500	500	500	500
	Load Distance, Center Of Driveaxle To Fork	x(mm)	485	485	485	485
	Wheelbase	y(mm)	1760	1760	1760	1760
Weight	Service Weight	kg	4555	4555	4555	4555
	Axle Loading, Ladenfront/Rear	kg	7195/860	7195/860	7195/860	7195/860
	Axle loading, Unladen Front/Rear	kg	1890/2665	1890/2665	1890/2665	1890/2665
Tyres, chassis	Tyresize, Front	－	28×9-15-14PR	28×9-15-14PR	28×9-15-14PR	28×9-15-14PR
	Tyresize, Fear	－	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
	Tread, Front	b10(mm)	1005	1005	1005	1005
	Tread, Rear	b11(mm)	973.5	973.5	973.5	973.5
Dimensions	Tiltofmast/Fork Carriage Forward/Cackward	α/β(°)	6-12	6-12	6-12	6-12
	Height,Mastlowered	h1(mm)	2170	2170	2170	2170
	Freelift	h2(mm)	150	150	150	150
	Lift	h3(mm)	3000	3000	3000	3000
	Height,Mast Extended	h4(mm)	4140	4140	4140	4140
	Heightofoverheadguard(cabin)	h6(mm)	2150	2150	2150	2150
	Lengthtofaceofforks	l2(mm)	2815	2815	2815	2815
	Overall width	b1(mm)	1225	1225	1225	1225
	ForkdimensionsISO2331	s/e/l(mm)	1070×122×50	1070×122×50	1070×122×50	1070×122×50
	Distancebetweenfork-arms	b5(mm)	290-1100	290-1100	290-1100	290-1100
	Ground clearance,laden,below mast	m1(mm)	130	130	130	130
	Ground clearance,centreofwheelbase	m2(mm)	175	175	175	175
	Turning Radius	We(mm)	2420	2420	2420	2420
	Aisle Width	Ast(mm)	2905	2905	2905	2905
Performance	Travelspeed,laden/unladen	km/h	-/20	-/20	-/20	-/19
	Liftspeed,laden/unladen	m/s	0.360/-	0.380/-	0.380/-	0.340/-
	Loweringspeed,laden/unladen	m/s	0.500/-	0.500/-	0.500/-	0.500/-
	Drawbarpull,laden/unladen	N	20300/-	20300/-	20300/-	19500/-
	Gradeability,laden/unladen	%	20/-	15/-	15/-	20/-
Combustion-engine	Engine Manufacturer/Type	－	C490BPG-204	4D27G31	4D27G31-078	A498BT1-1
	Engine Power	kw	40	36.8	36.8	36.8
	Rated Speed	min	2650	2500	2500	2400
	Rated Torque	N·m/r/min	160/1800-2000	156/1800-2000	156/1700-1900	186/1600-1800
	Number Of Cylinders/Displacement	(-)/(cm3)	-/2670	-/2670	-/2670	-/3168
	Battery Voltage/Nominal Capacity	V/Ah	12/90	12/90	12/90	12/90
	Transmissions Manufacturer	－	China	China	China	China
	Transmissions Type	－	Powershift	Powershift	Powershift	Powershift
	Stage FWD/RVS	－	1-1	1-1	1-1	1-1
Addition	Operating Pressure For Attachments	bar	175	175	175	175
Data	Fuel Tank Capacity	liter	70	70	70	70

Appearance
/ Based on around 10 years of Nissan technology applied on HC trucks, and HANGCHA's own R and H series, the new A series is a fully own researched truck. The improved new outline, safety, comfortability, and reliability, all provide better performance to the trucks.
Outline
/ Applied the advanced outline designing method, the truck is
designed with the stream, sporty outline, and thanks to the new
design, all the exposed parts are metal made. which is firm and
reliable.
Safety
/ Thanks to the long wheelbase design, the longitudinal stability of the whole truck is improved, and the residual load capacity at the same height is improved greatly. At the same time, it prolongs the working lifetime of steering tires by reducing the rear axle load.
/ Improved strength of OHG is to make sure the protection of the operator.
/ Lock of the engine cover is a standard specification, which ensures
the operator's safety.
Comfortable
/ The same ergonomic technology as the R series has been adopted.
The smaller steering wheel, extra space for foot and operator space, and wider forward visibility, all improve the operator's comfort and release the operator's fatigue.
/ Easy access to engine and transmission due to applied bolt-type fastened front plate, greatly improving the convenience of daily maintenance and repair.
/ The applied integral engine cover strengthens the rigidity of the cover and reduces the noise at the same time.
Reliability
/ The air intake system adopts a high-positioned independent channel which located on the rear OHG to prevent dust intake.
/ Enlarged cross-section of rear OHG improves the air intake capacity and reduces air intake resistance, which makes internal combustion more complete and prolongs engine life.
/ The aluminum ribbon-tubular radiator with large capacity and the optimized cooling system further enhance the heat dissipation capability of the whole truck to ensure the reliability of the engine.
