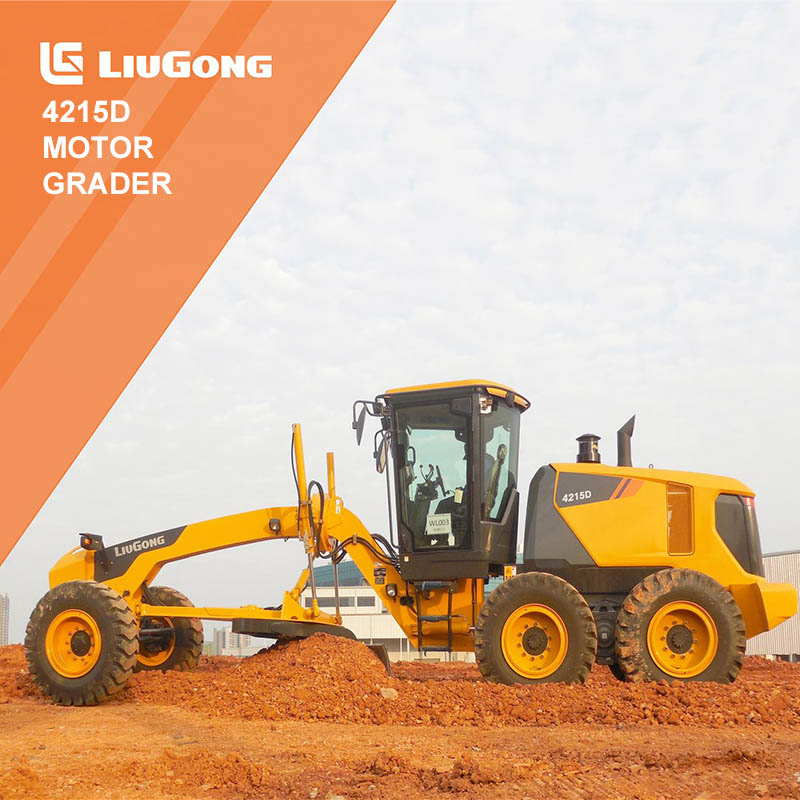

Liugong Grader

Name: Liugong Grader
Brand: CAMCO MALL
Price: 99999 USD
Availability: OutOfStock

0.0 (0)

0 Sold

$99,999.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description
About Camco

Emission Regulation	Tier 2 / Stage II
Make	Cummins
Model	6LTAA9.3
Rated Power	162 kW (217 hp / 220 ps) @ 2,200 rpm
Maximum Torque	984 N·m
Number of Cylinders	6
Aspiration	Turbo & air-to-air intercooled
Transmission
Transmission Type	Power shift
Torque Converter	Three - member single turbine
Maximum Travel Speed, fwd	42 km/h
Maximum Travel Speed, rev	26.2 km/h
Number Of Speeds, fwd	6
Number Of Speeds, rev	3
AXLE
Differential Front Type	Limited slip standard
Differential Rear Type	Chain drive
Axle Oscillation	±16°
Front Axle, Wheel Lean Angle	Left / right ±18°
STEERING
Steering Configuration	Load sensor steering gear
Steering Relief Pressure	16.7 MPa
Minimum Turning Radius	7,200 mm
Steering Angle	±50°
Frame Articulation Angle	±27°
BRAKES
Service Brake Type	Shoe
Service Brake Location	Rear axle
TIRES
Tire Size	17.5-25
HYDRAULIC SYSTEM
Main Pump Type	Gear
Main Relief Pressure	20 MPa
Main Pump Flow	122 L/min
WORKING CAPACITIES
Maximum Draw Pull	110 kN
Cutting Pressure	8,150 kg
TANDEM DRIVE PERFORMANCE
Height	600 mm
Width	210 mm
Center Distance	1,538 mm
MOLDBOARD PERFORMANCE
Bank Cut Angle	28~74°
Moldboard Lift Above Ground	570 mm
Moldboard Side Shift, right / left	635 / 765 mm
Maximum Sloping Angle	90°
Cutting Depth	736 mm
Circle Rotation	360°
Circle Diameter	1,455 mm
Circle Thickness	140 mm
DIMENSIONS
Wheelbase	6,230 mm
Overall Length	9,090 mm
Overall Height with Cab	3,380 mm
Clearance under Front Axle	602 mm
Moldboard Standard Length	4,270 mm
Moldboard Standard Thickness	19 mm
Moldboard Standard Height	645 mm
OPERATING WEIGHTS
Operating Weight	16,500 kg
SERVICE CAPACITY
Fuel Tank	348 L
Engine Oil	19 L
Cooling System	35 L
Hydraulic Reservoir	165 L
Transmission and Torque Converter	33 L
Axles, Each	26 L
OPTIONAL EQUIPMENT
Rear Ripper
Front Dozer
Automatic Leveling System
Rotary Beacon
Frictional Flake Worm Box

High reliability Using world-class transmission technology, it has good self-adaptability and absorbs external load vibration and impact; it is equipped with high-strength heavy-duty roller chains to meet various working conditions and ensure strong power output.
Rigid and excellent front-mounted cab layout, precise operation; scientific load distribution centered on the blade, strong traction; professional roller structure slewing support, durable, maintenance-free; precise mechanical analysis, solid and reliable frame structure design; Industrial design, the whole machine is tough and beautiful.

1. Strong power, excellent performance.
2. High-end configuration and beautiful appearance.
3. Broad operating vision.
4. comfortable driving experience.
5. Easy Maintenance.
