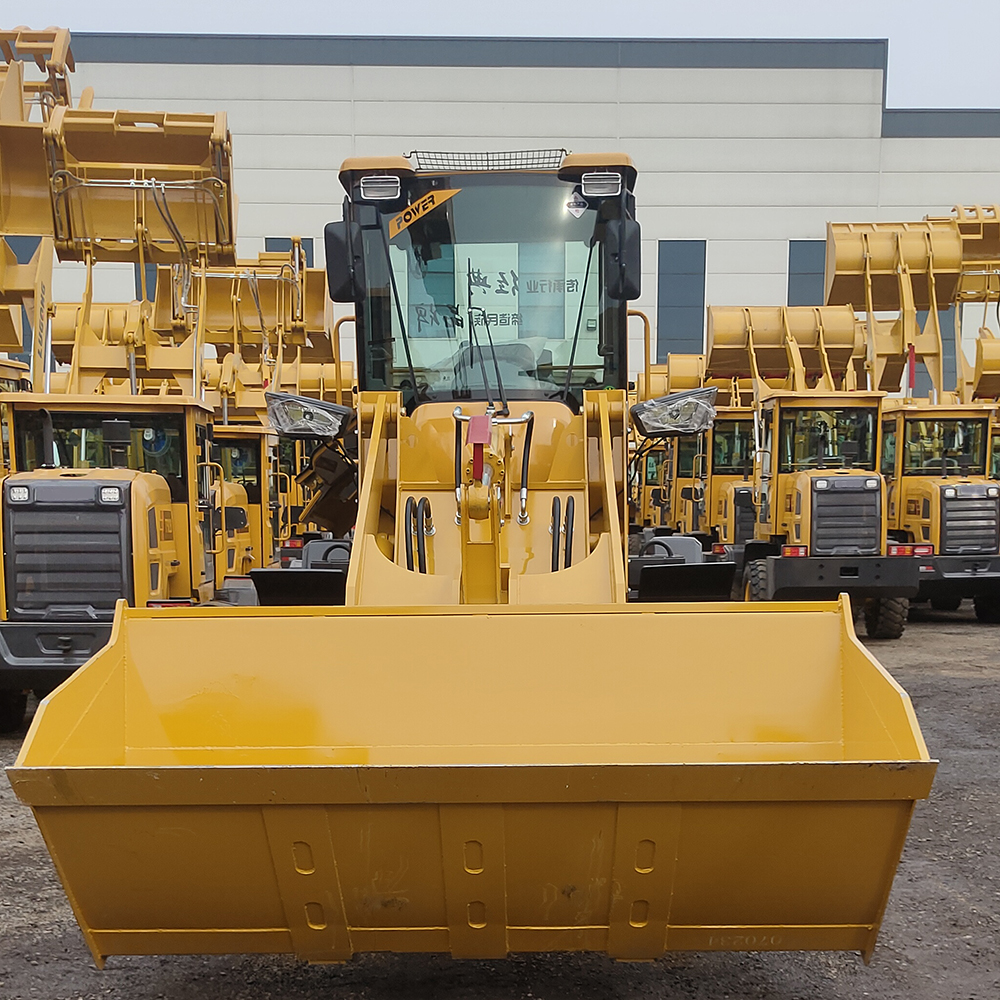

Lugong small wheel loader L-series

Name: Lugong small wheel loader L-series
Brand: CAMCO MALL
Price: 7682 USD
Availability: InStock

0.0 (0)

0 Sold

$7,682.00

The price above is FOB China price.
Please contact our local branches in Africa for precise prices.
If the price is $99999, please contact us for precise prices.

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (0)

Description
About Camco

Model	L920	L928	L930	L938
Main Technical Parameters
Bucket Capacity	0.60m³	0.80m³	0.90m³	1.0m³
Rated Load （kg）	1500	1600kg	1800kg	2200kg
Machine Weight（kg）	2700	3200kg	3350kg	4950kg
Overall Dimension (mm)	4940X1800X2750	5460X1700X2800	5460X1900X2800	5900X2050X2950
Wheelbase (mm)	2080	2150	2200	2580
Wheel Track (mm)	1335	1360	1500	1570
Bucket Width(mm)	1700	1700	1900	2000
Max. dumping Height(mm)	2900	3200	3200	3500
Max. dumping Height (mm)	740	700	700	750
Turning Radius (mm)	4500	4500	4500	4750
Min. ground Clearance (mm)	260	260	260	320
Engine
Model	Sida490	Sida490	Weichai 4102	Sida 4102 turbo
Pattern	In-Line, 4 Cylinder	In-Line, 4 Cylinder	In-Line, 4 Cylinder	In-Line, 4 Cylinder
Rated Power/Speed	42KW/2400	42KW/2400	42KW/2400	42KW/2400
Weight （kg）	230	230	240	320
Type	Hydraulic Torque Converter	Hydraulic Torque Converter	Hydraulic Torque Converter	Hydraulic Torque Converter
Pattern	Automatic	Automatic	Automatic	Automatic
Gear Shift	Double H/L	Double H/L	Double H/L	Double H/L
Axle	AWD, Lsuzu	AWD, Lsuzu	AWD, Small Hub Reduction	AWD, Small Hub Reduction
Tyre	825-16	20.5-16	20.5-16	16/70-20
Working Hydraulic System
Operating Type	Mechanical Single Joystick	Mechanical Single Joystick	Mechanical Single Joystick	Mechanical Single Joystick
Lifting Time（s）	5	5	5	5
Falling Time（s）	3	3	4	4
Braking System
Service Brake	Oil Drum Brake On 4 Wheel	Oil Drum Brake On 4 Wheel	Air Hydraulic Disc Brake	Air Hydraulic Disc Brake
Parking Brake	Hand Operated	Hand Brake	Hand Brake	Hand Brake
－	－	Optional Configuration: Engine: YN27 / 42kw	Optional Configuration: Engine: Sida 493 Turbo / 58kw	－
－	－	Small Hub Reduction Axle, A/C, Cabin Heater, Forklift,	A/C, Cabin Heater, Forklift	－
－	－	Pallet Fork, Log Grapple, Grass Fork, etc.	Pallet Fork, Log Grapple, Grass Fork, etc.	－

We are committed to providing customers with reasonably priced, high-quality equipment.
CAMCO adheres to the following service concepts: customer-first and integrity-based, world-class brands, systematization, and standardization of customer service to provide competitive overall service solutions with pre-sales, sales, and after-sales services.
We are devoted and committed to providing durable products and quality service to win the lasting trust and support of our customers.
